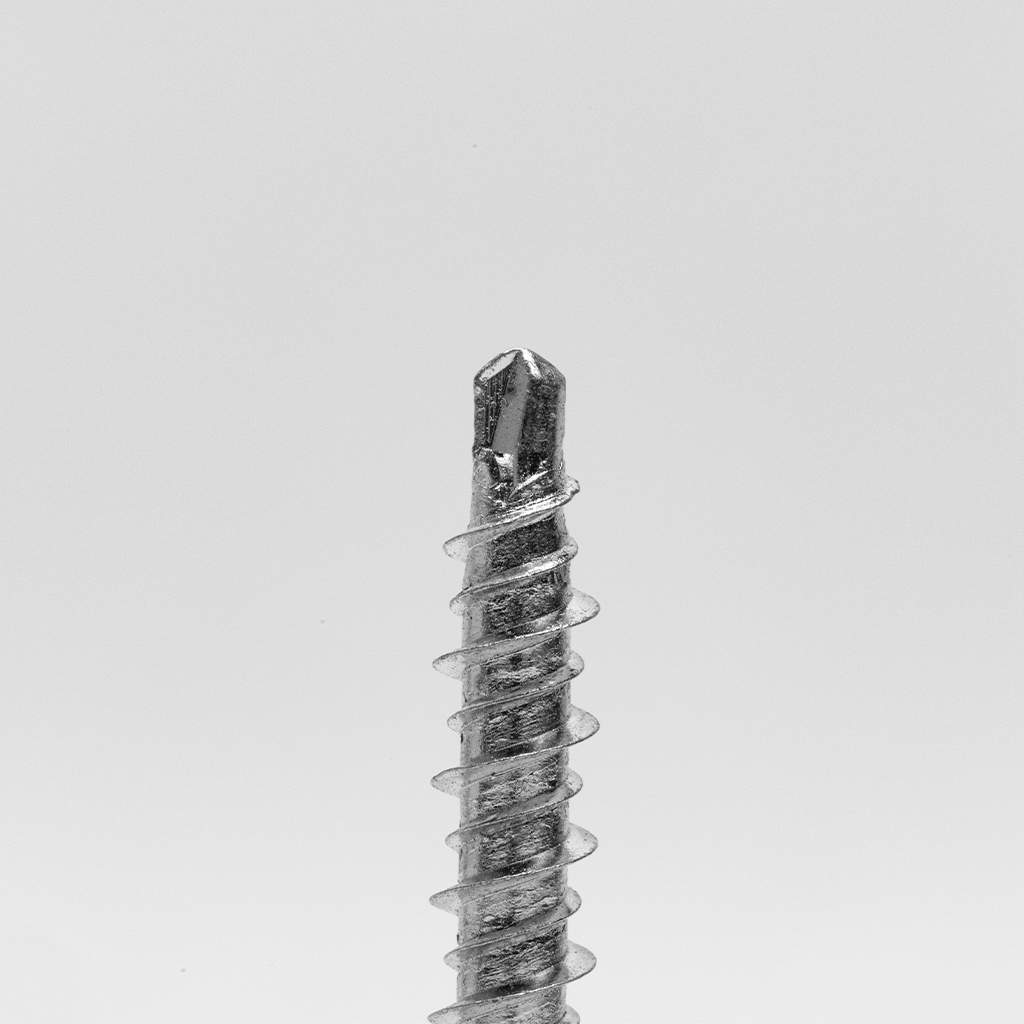

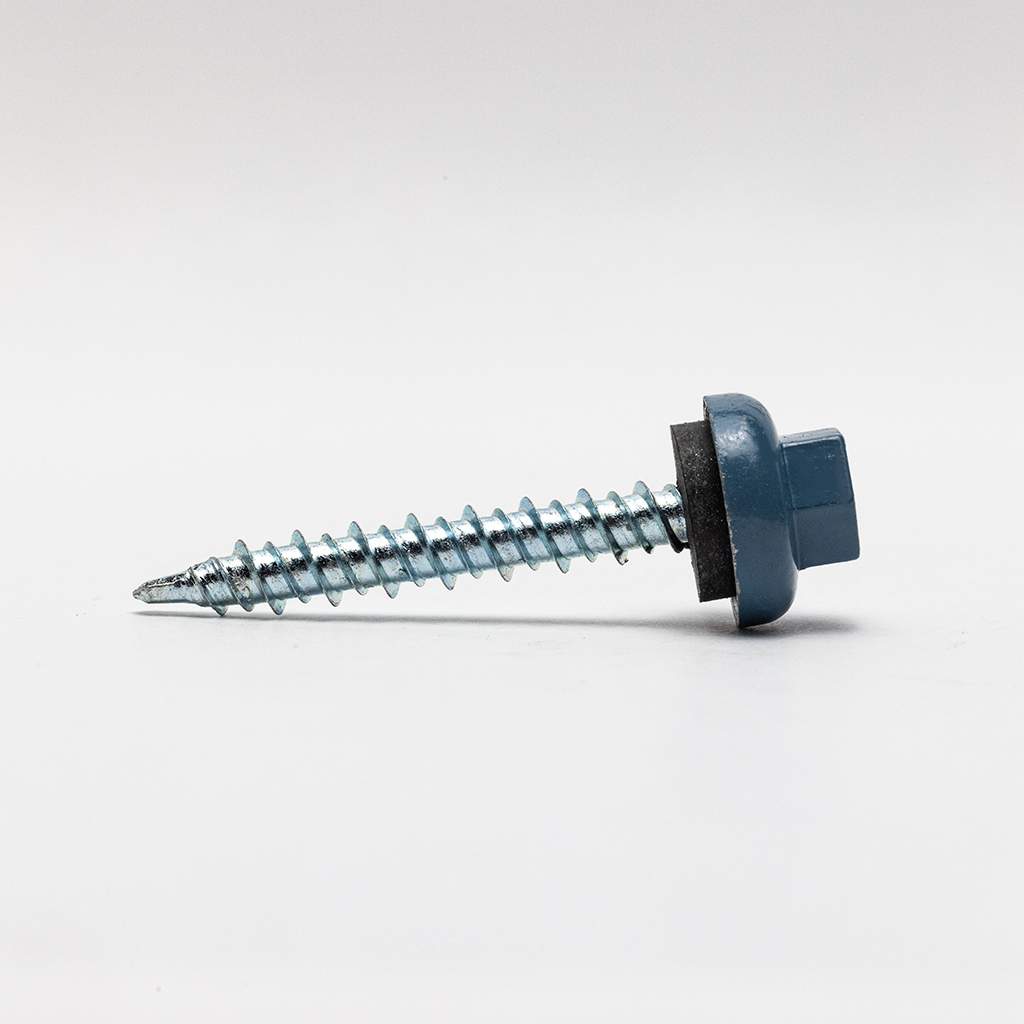

Meet the latest addition to the ProZ™ family. The ProZ™ #10 Hi-Lo MINI-DRILLER™ has all of the specs that make the ProZ™ #10 Hi-Lo the go-to fastener, but with the added MINI-DRILLER point. The MINI-DRILLER™ makes easy work of driving through metal panels, while the Hi-Lo thread provides superior pull-out strength in metal to wood applications.

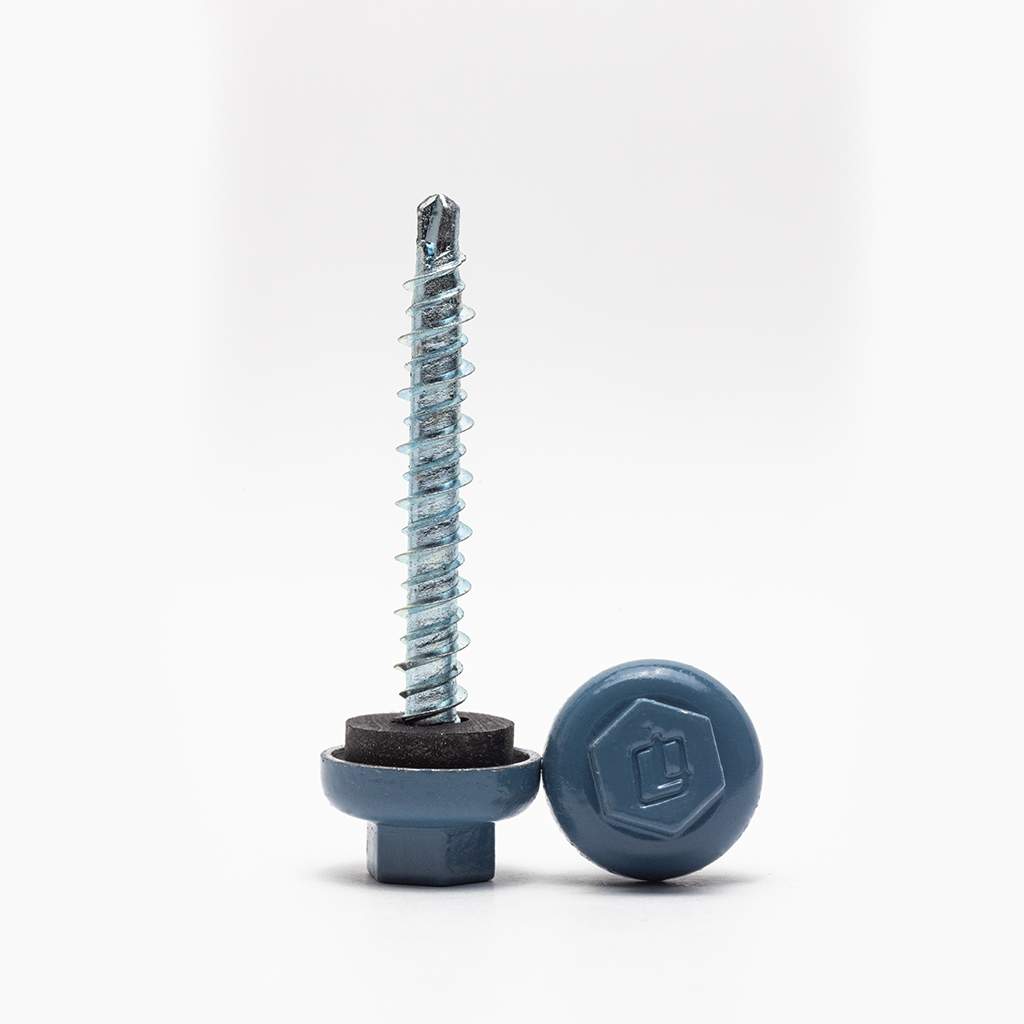

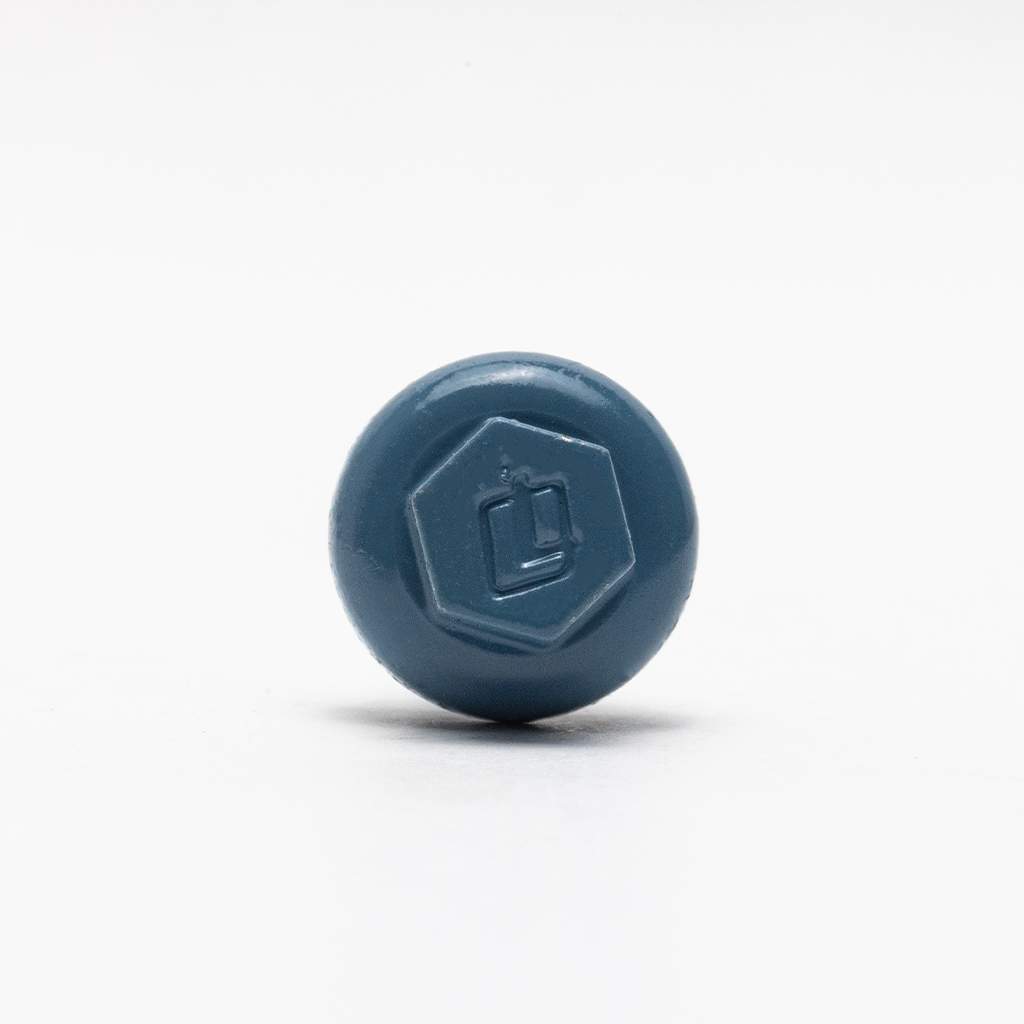

• No red rust – Zinc Aluminum Alloy Cap
• Faster start time
• Increased performance when drilling through two layers of metal
• Reduces trapped steel shavings
• Zinc plated
• Hi-Lo threads
Previous
Next
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 101PZMD | #10 x 1" | 5/16" Hex | Reduced Point | 2,500 | 33.0 |
| 10112PZMD | #10 x 1 - 1/2" | 5/16" Hex | Reduced Point | 2,000 | 31.5 |
| 102PZMD | #10 x 2" | 5/16" Hex | Reduced Point | 1,500 | 27.1 |
| 10212PZMD | #10 x 2 - 1/2" | 5/16" Hex | Reduced Point | 1,000 | 20.8 |
| 103PZMD | #10 x 3" | 5/16" Hex | Reduced Point | 500 | 12.1 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 7/16" OSB | Full | 232 |
| 1/2" Ply | Full | 377 |
| 3/14" Ply | Full | 441 |
| 2 X Yellow Pine | 1" | 837 |
| 2 X Spruce Pine Fir | 1" | 386 |
| 2 X Spruce Pine Fir | 1 - 1/2" | 782 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 872 |
| AZ55 Galvalume | 26 | 0.018 | 765 |
| AZ55 Galvalume | 24 | 0.024 | 1120 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1770 | 2580 | 84 |
