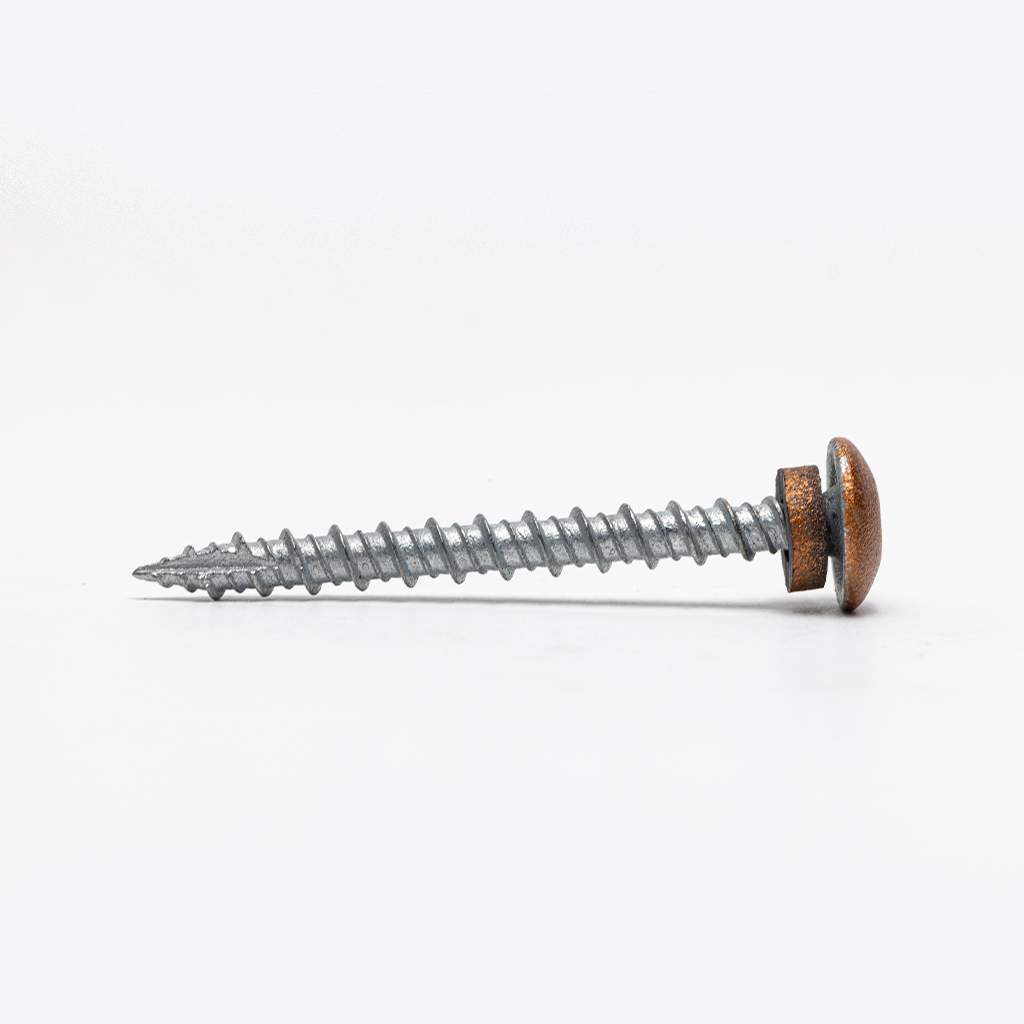

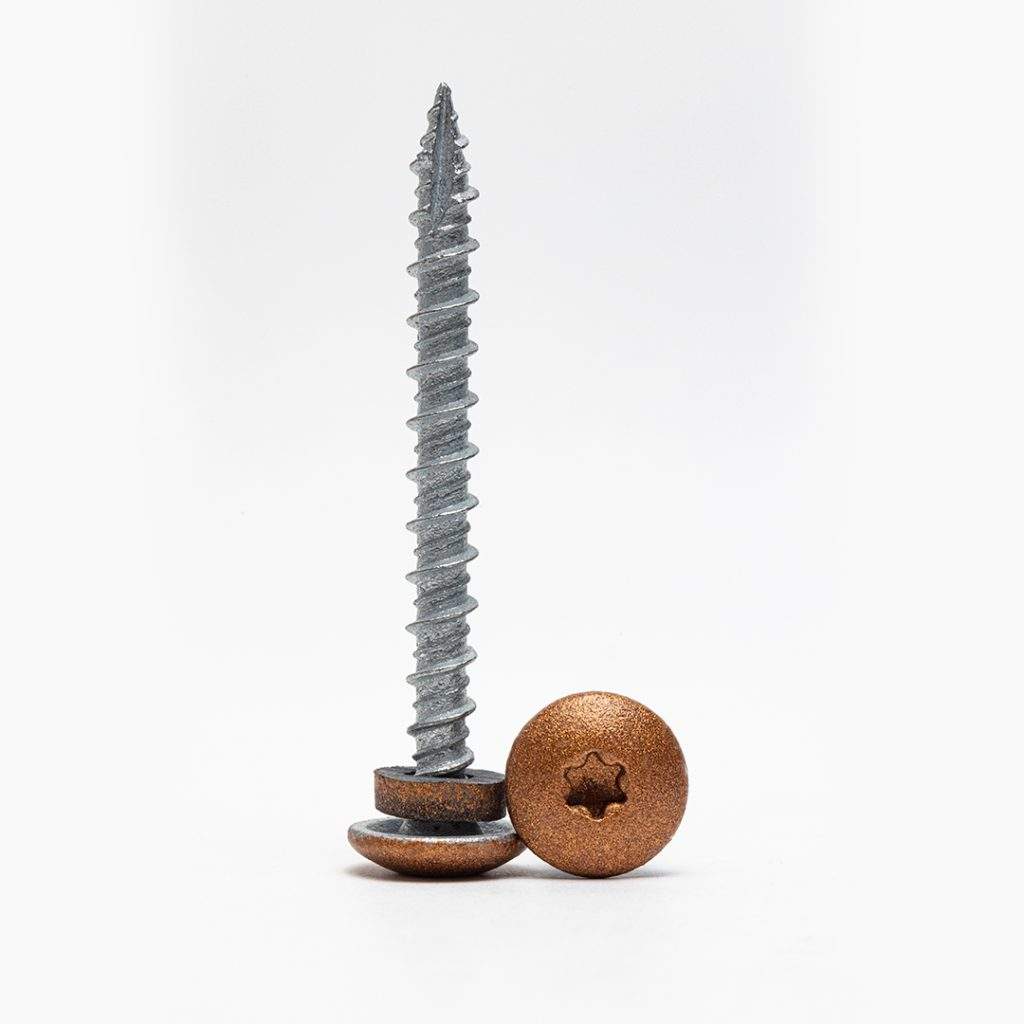

Your choice for a low profile metal to wood screw. LoGrip is a low profile, metal to wood roofing screw that has a refined appearance to the traditional hex head roofing screw. Features include T25 star drive, Hi-Lo threads, is mechanically galvanized for corrosion protection, and has an EPDM rubber washer that incorporates a secure seal. LoGrip provides a good grip to hold your metal roofing in place by having a type 17 drill point for easy penetration. This low-profile fastener is also available in 1″ without a washer for interior liner panels.

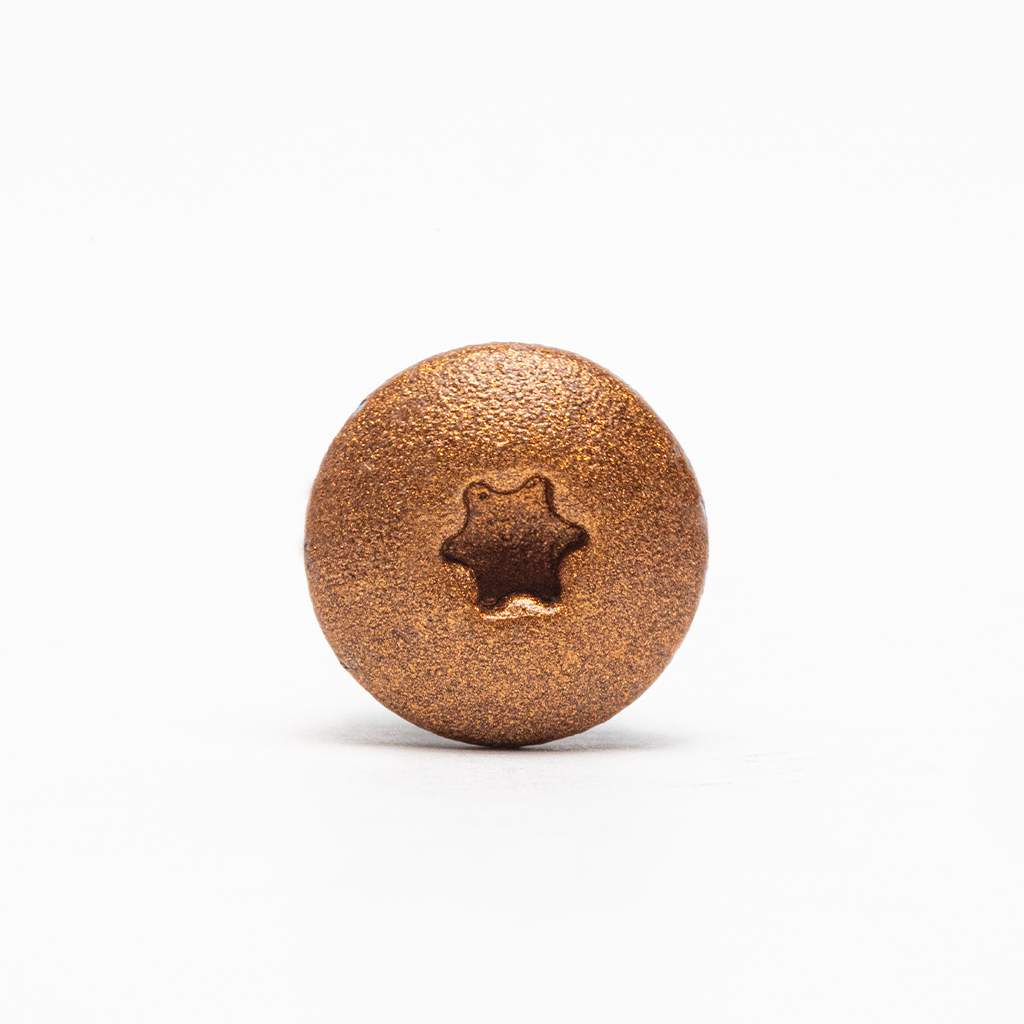

• T25 Drive bit
• Low Profile

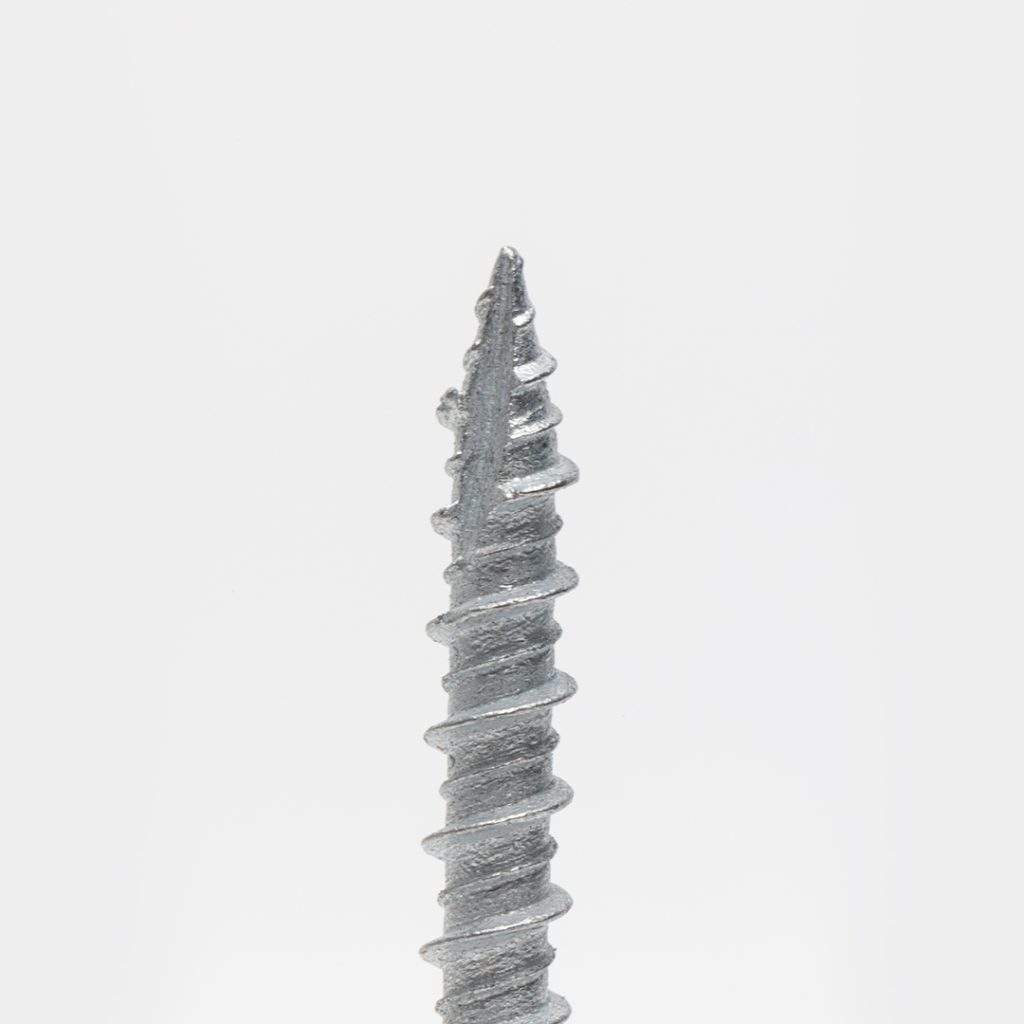

• Type 17
• Mechanical Galvanized
• Hi Lo Threads
• EPDM Rubber Washer
• Available in any color
• Metal to Wood
Previous
Next
#10 Hi-Lo
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 101LGNW | #10 x 1" No Washer | T-25 | T-17 | 3,000 | 24.6 |
| 101LG | #10 x 1" | T-25 | T-17 | 3,000 | 25.5 |
| 10112LG | #10 x 1-1/2" | T-25 | T-17 | 2,500 | 26 |
| 102LG | #10 x 2 | T-25 | T-17 | 2,000 | 25.6 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 7/16" OSB | Full | 200 |
| 1/2" | Full | 357 |
| 3/4" Ply | Full | 472 |
| 2 x Yellow Pine | 1" | 675 |
| 2 x Spruce Pine Fir | 1" | 692 |
| 2 x Spruce Pine Fir | 1-1/2" | 1,006 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 451 |
| AZ55 Galvalume | 26 | 0.018 | 622 |
| AZ55 Galvalume | 24 | 0.024 | 878 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1,880 | 2,617 | 190 |

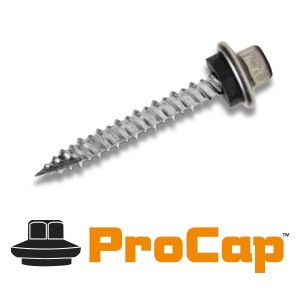

Also Available
