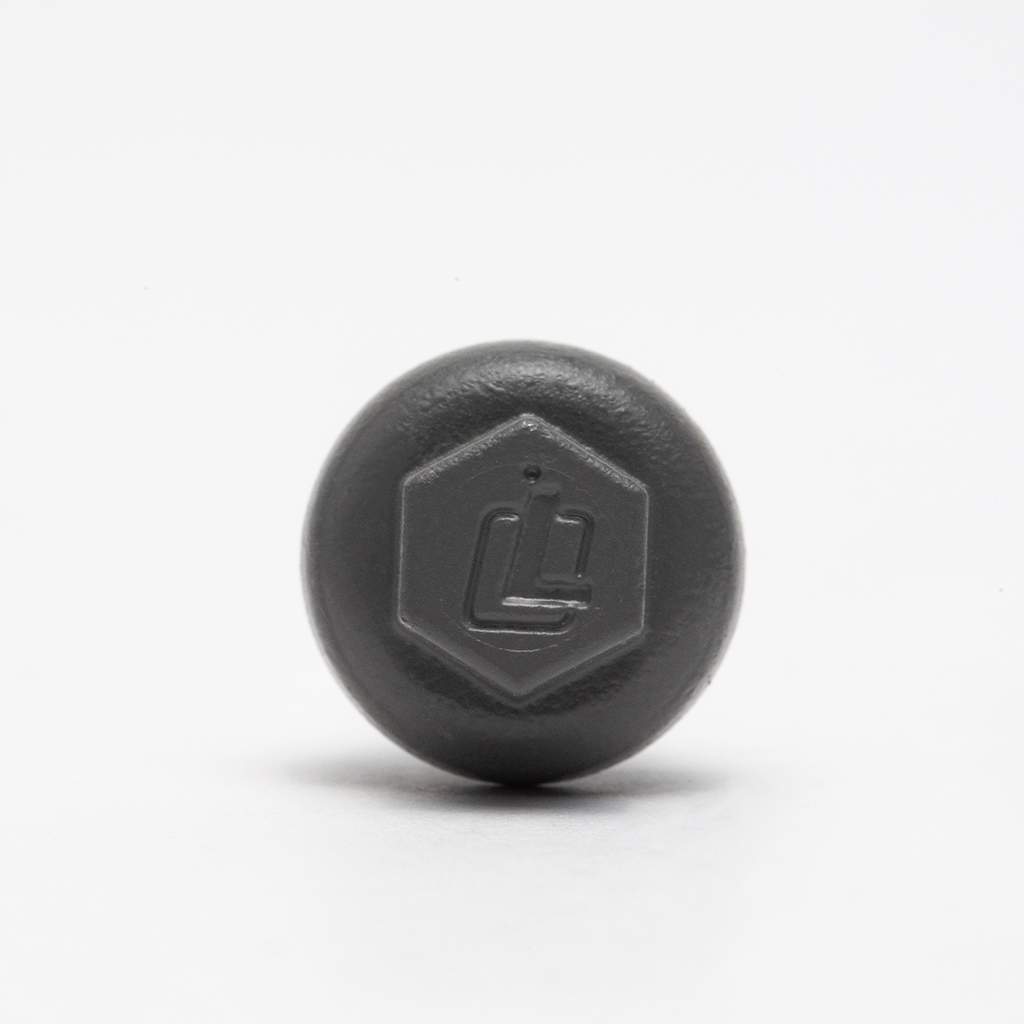

Introducing the new ProZ SD, designed to fit securely and ensure a weather tight seal. The design of the washer head reduces overdriving and can never red rust with the zinc aluminum alloy cap. ProZ SD provides a strong cap that withstands the toughest installation conditions and is compatible with all panel finishes.
• No red rust – zinc aluminum alloy cap
• Self-drilling #3, #5 and stich drill points available
• Reduces overdrive
• 50 year warranty
• Long-lasting EPDM washer

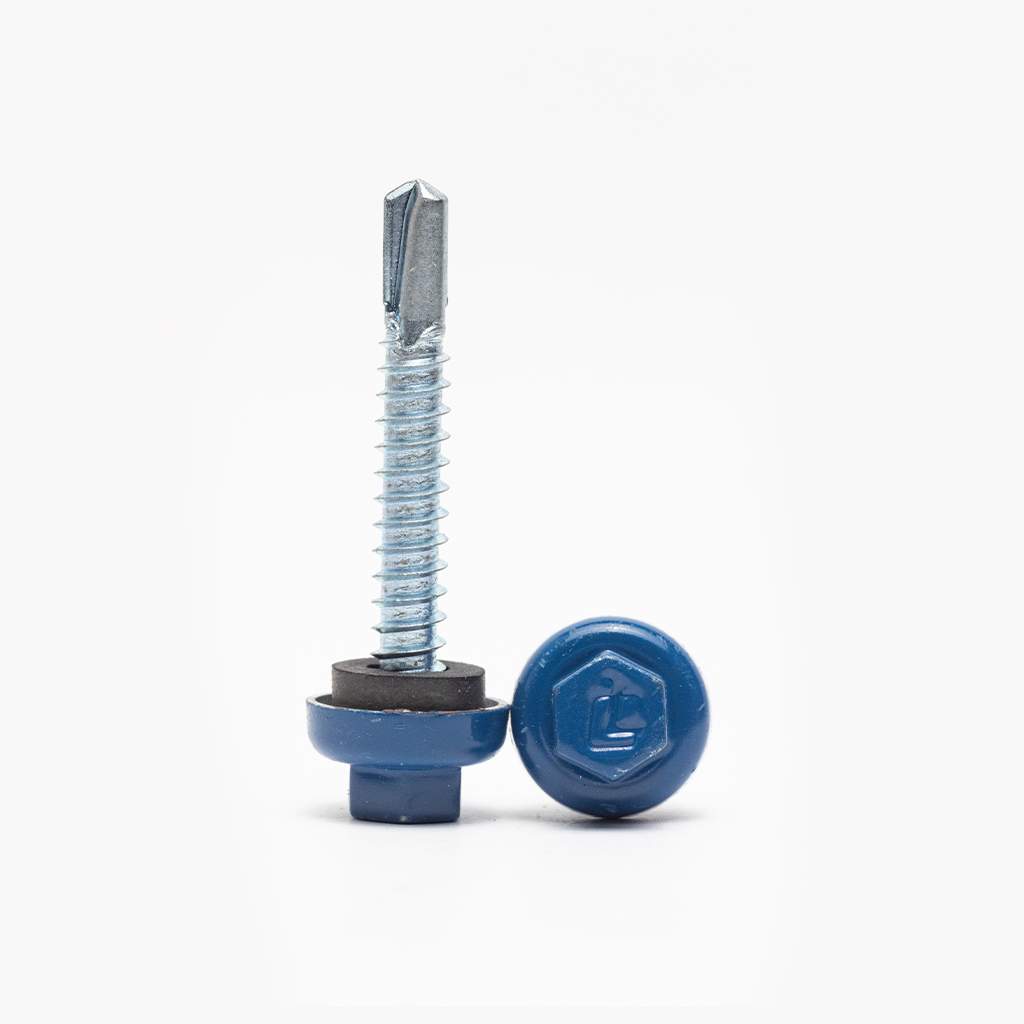

ProZ SD #3 Self Drilling
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 121PZSD | #12 - 14 x 1" | 5/16 Hex | #3 | 3000 | 28.1 |
| 12114PZSD | #12 - 14 x 1-1/4" | 5/16 Hex | #3 | 2500 | 27.9 |
| 12112PZSD | #12 - 14 x 1-1/2" | 5/16 Hex | #3 | 2000 | 27.5 |
| 122PZSD | #12 - 14 x 2" | 5/16 Hex | #3 | 1500 | 26.1 |
| 123PZSD | #12 - 14 x 3" | 5/16 Hex | #3 | 1000 | 19.7 |
Pull Out Strength
| Substrate | Pull Out Strength |
|---|---|
| 12 ga HRS | 1223 |
| 14 ga HRS | 723 |
| 16 ga HRS | 587 |
| 18 ga HRS | 418 |
| 20 ga HRS | 302 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 577 |
| AZ55 Galvalume | 26 | 0.018 | 855 |
| AZ55 Galvalume | 24 | 0.024 | 1213 |
| AZ55 Galvalume | 22 | 0.030 | 1254 |
| Shear | Tensile | Torsional |
|---|---|---|
| 2800 | 4500 | 129 |

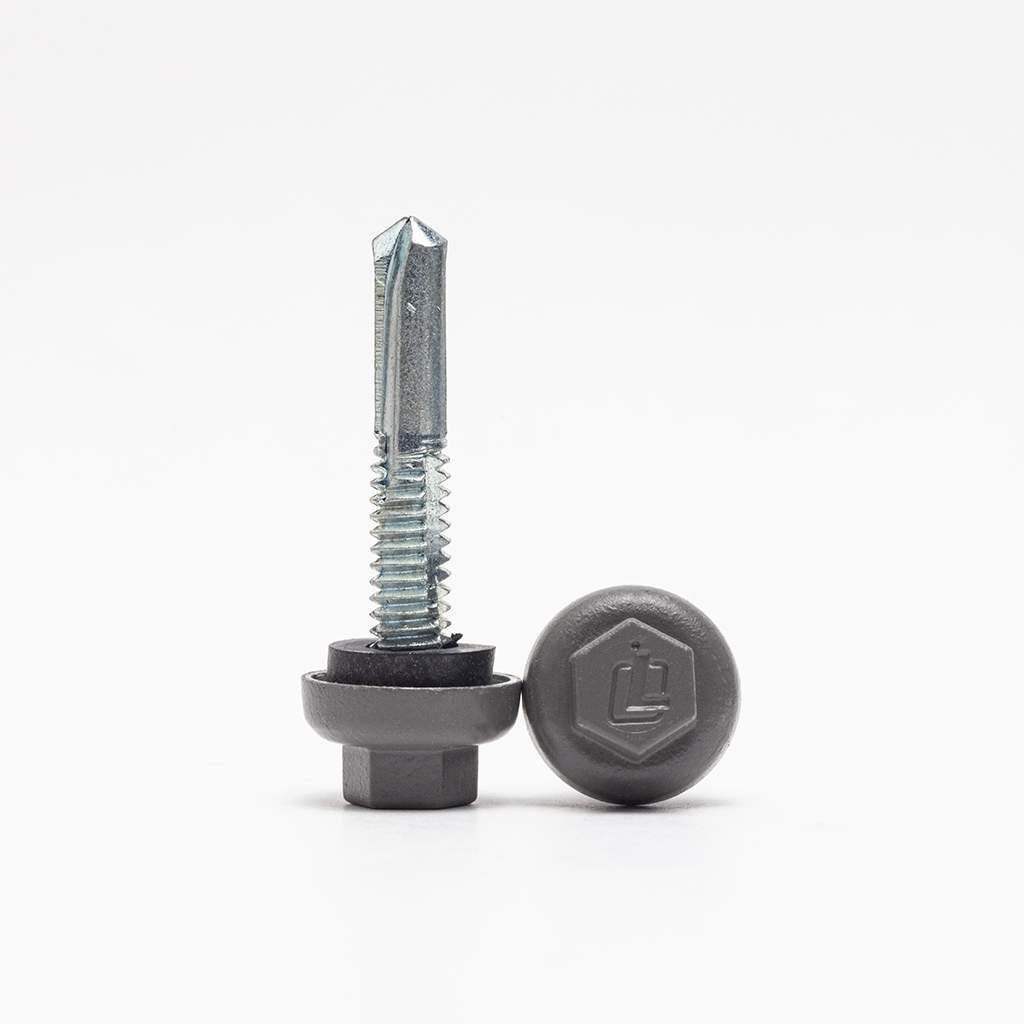

ProZ SD #5 Self Drilling
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 1224114PZSD | #12-24 x 1-1/4" | 5/16 Hex | #5 | 2500 | 43.0 |
Pull Out Strength
| Substrate | Pull Out Strength |
|---|---|
| 12 ga HRS | 806 |
| 14 ga HRS | 497 |
| 16 ga HRS | 410 |
| 18 ga HRS | 268 |
| 20 ga HRS | 196 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 561 |
| AZ55 Galvalume | 26 | 0.018 | 710 |
| AZ55 Galvalume | 24 | 0.024 | 1009 |
| AZ55 Galvalume | 22 | 0.030 | 1254 |
| Shear | Tensile | Torsional |
|---|---|---|
| 2760 | 3246 | 100 |
