Levi’s Hi-Lo screws are some of the best in the industry. They are sharper, drill better, and the cut point is true. The paint stays on when installing and builders prefer Levi’s “true” sizing and Hi-Lo threading for better holding power and easy installation. Choose from 40 plus in-stock colors that can ship immediately or specifically color match and still receive timely shipping.

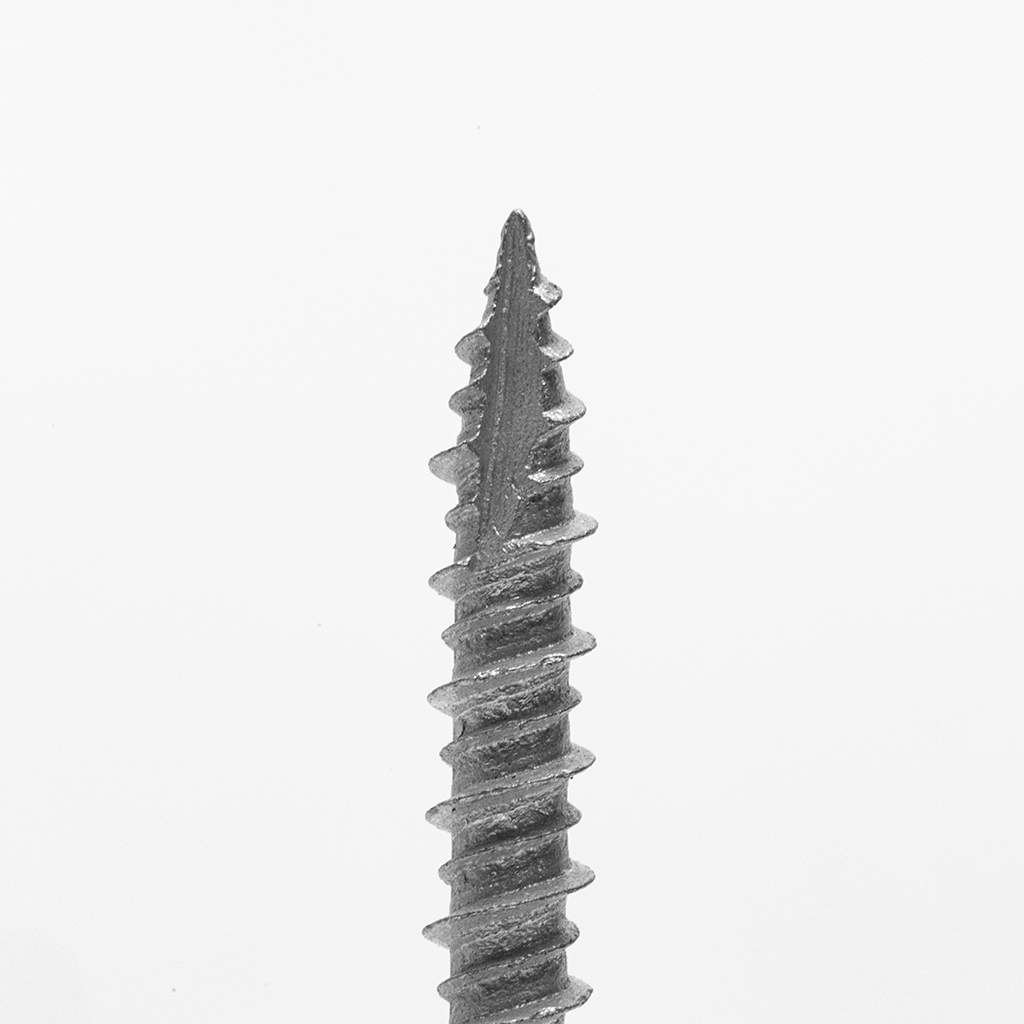

• #10 Hi-Lo Screw, Type 17 Point
• Mechanical galvanized
• Hi-Lo threads
• Galvanized EPDM washer 1/2″ OD
• Fastens metal to wood
Previous
Next
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 1234ST | #12 - 14 x 3/4" Stitch | 1/4" Hex | Sharp Point | 3,000 | 25.9 |
| 101HL | #10 x 1" | 1/4" Hex | T-17 | 3,000 | 26.6 |
| 10112HL | #10 x 1-1/2" | 1/4" Hex | T-17 | 2,500 | 27.8 |
| 102HL | #10 x 2" | 1/4" Hex | T-17 | 2,000 | 26.4 |
| 10212HL | #10 x 2-1/2" | 1/4" Hex | T-17 | 1,500 | 23.7 |
| 103HL | #10 x 3" | 1/4" Hex | T-17 | 1,000 | 18.3 |
| 104HL | #10 x 4" | 1/4" Hex | T-17 | 500 | 11.8 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 7/16" OSB | Full | 158 |
| 1/2" Ply | Full | 305 |
| 3/4" Ply | Full | 530 |
| 2 x Yellow Pine | 1" | 986 |
| 2 x Spruce Pine Fir | 1" | 1,023 |
| 2 x Spruce Pine Fir | 1 - 1/2" | 1,379 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 415 |
| AZ55 Galvalume | 26 | 0.018 | 560 |
| AZ55 Galvalume | 24 | 0.024 | 717 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1,900 | 2,736 | 60 |
