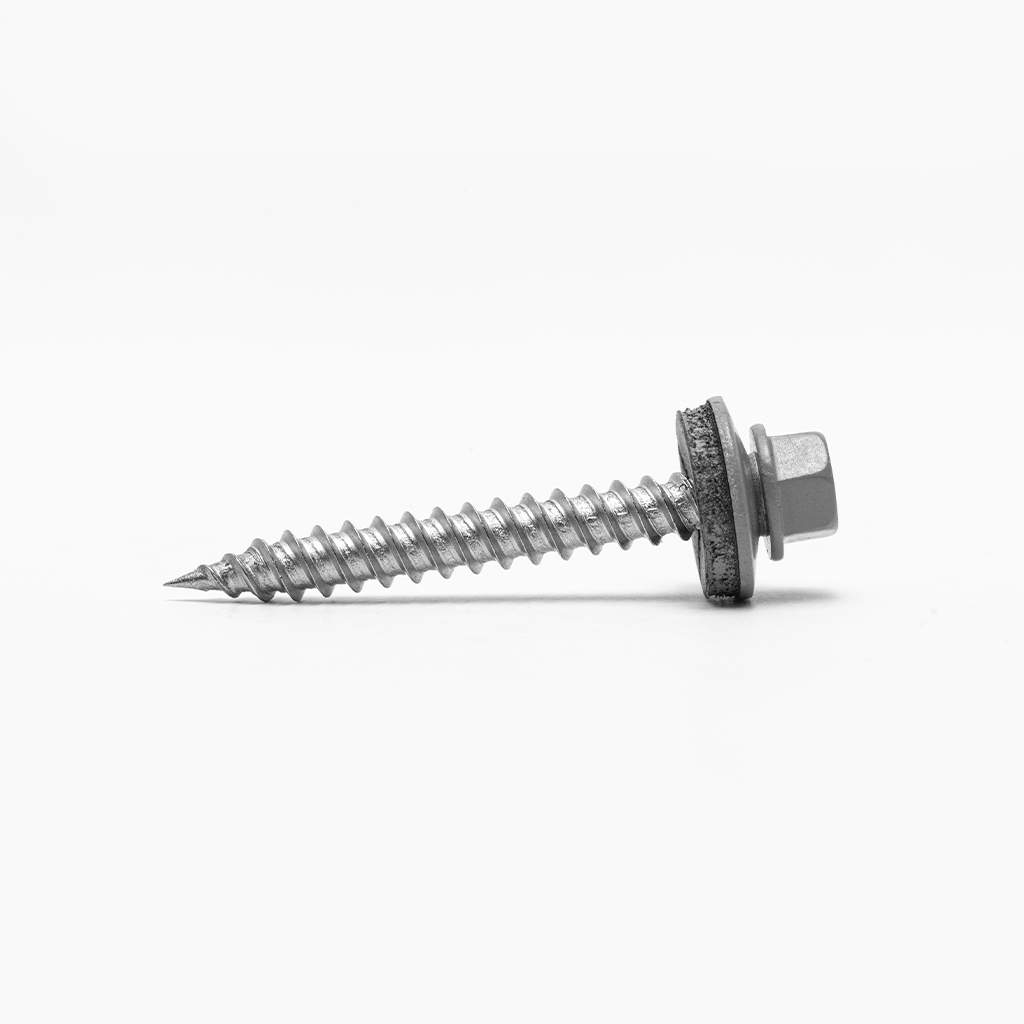

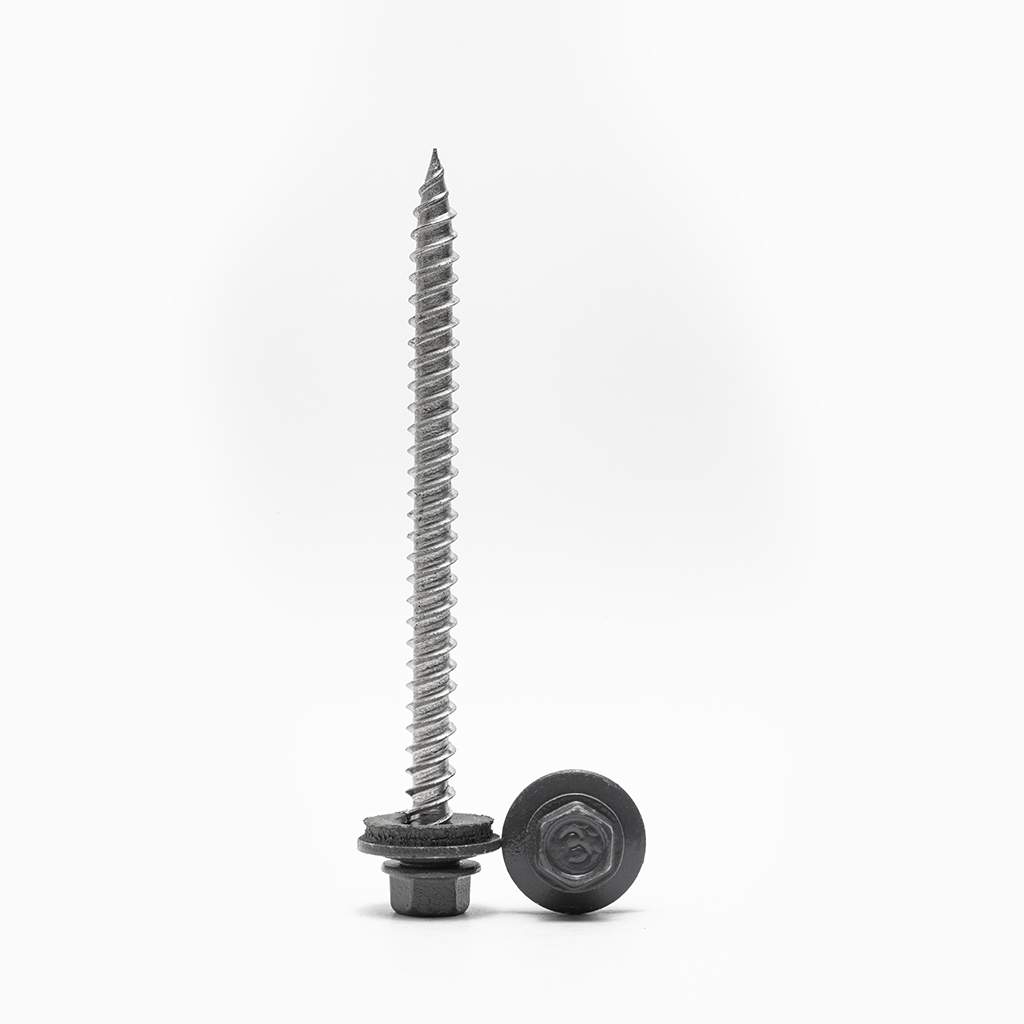

FastGrip #9 - Stainless Steel
The stainless steel Fastgrip™ series of screws does not compromise on the true size of its aluminum ½” diameter washer. Available in 40 plus quick ship colors, the Fastgrip™ easily drills through aluminum panels and is prepared to handle tough installation conditions. The Fastgrip™ stainless steel is backed by Levi’s 50 year warranty.
• 300 series stainless steel
• Aluminum EPDM washer 1/2” OD
• Fastens metal to wood
• Easily drills through aluminum panels

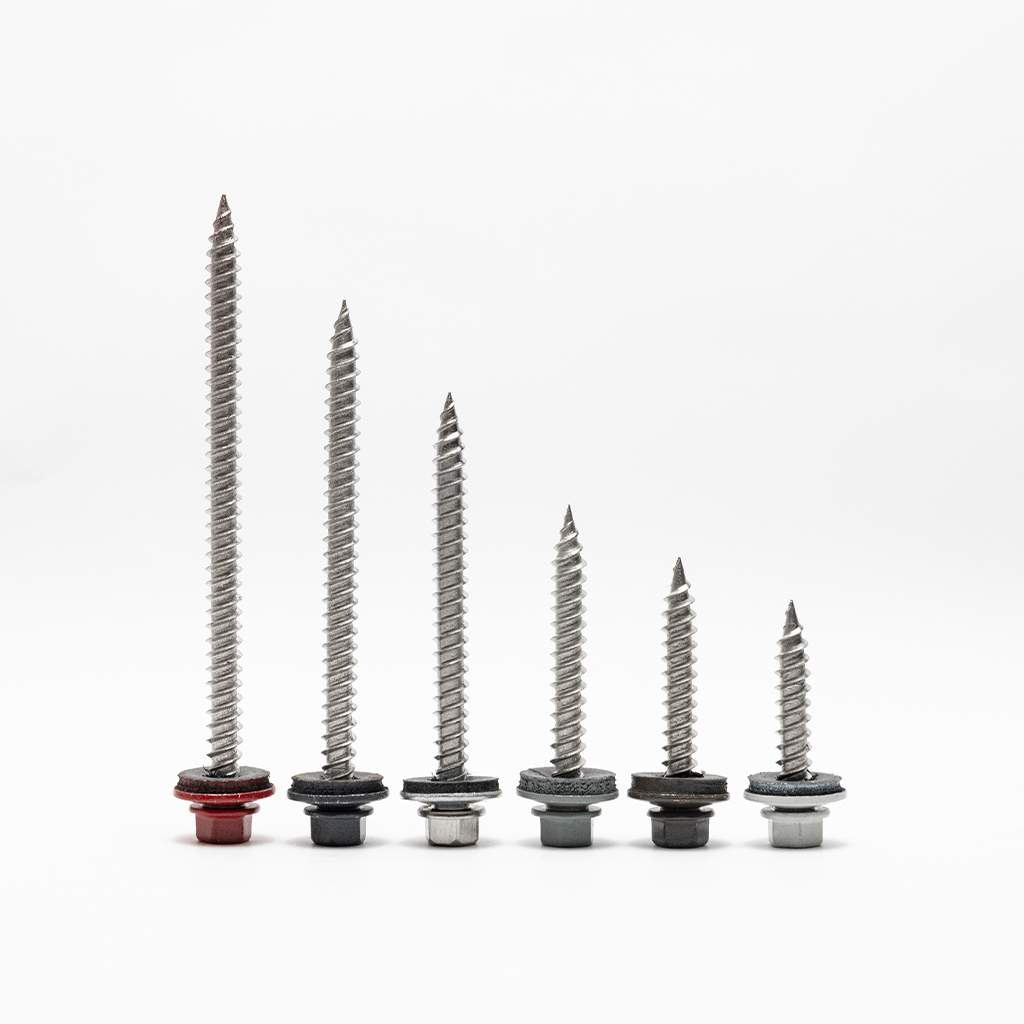

| Part # | Description | Head Style | Drill Pt | Pcs/Bucket | Lbs/Bucket |
|---|---|---|---|---|---|
| 91SS | #9 x 1" | 1/4" Hex | SP | 3,000 | 24.2 |
| 9114SS | #9 x1-1/4" | 1/4" Hex | SP | 2,500 | 22.7 |
| 9112SS | #9 x 1-1/2" | 1/4" Hex | SP | 2,500 | 26.1 |
| 92SS | #9 x 2" | 1/4" Hex | SP | 2,000 | 24.7 |
| 9212SS | #9 x 2-1/2" | 1/4" Hex | SP | 1,500 | 22.3 |
| 93SS | #9 x 3" | 1/4" Hex | SP | 1,000 | 17.5 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 7/16" OSB | Full | 180 |
| 1/2" Ply | Full | 327 |
| 3/4" Ply | Full | 465 |
| 2 x Yellow Pine | 1" | 894 |
| 2 x Spruce Pine Fir | 1" | 692 |
| 2 x Spruce Pine Fir | 1 - 1/2" | 1,264 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 411 |
| AZ55 Galvalume | 26 | 0.018 | 567 |
| AZ55 Galvalume | 24 | 0.024 | 788 |
| SHEAR | Tensile | Torsional |
|---|---|---|
| 1,280 | 1,455 | 52 |
