Snow retention systems are designed to retain snow and ice on roofs, reducing the possibility of damage to gutter, adjacent roofs, landscape, vehicles or people below. This system features a versatile bar-type for snow retention which utilizes a strip of the actual roof material as an insert to provide a perfect color-match for the life of the roof.
• No panel penetration
• Does not violate panels’ thermal movement
• Unequaled holding strength
• S-5! attachment does not violate roof system warranties
• Will not damage the roof or finish
• ColorGaurd uses 2″ strips of your roofing material so it will match the color of your rood for the entire life of the roof
• Manufactured from mill finished aircraft quality aluminum

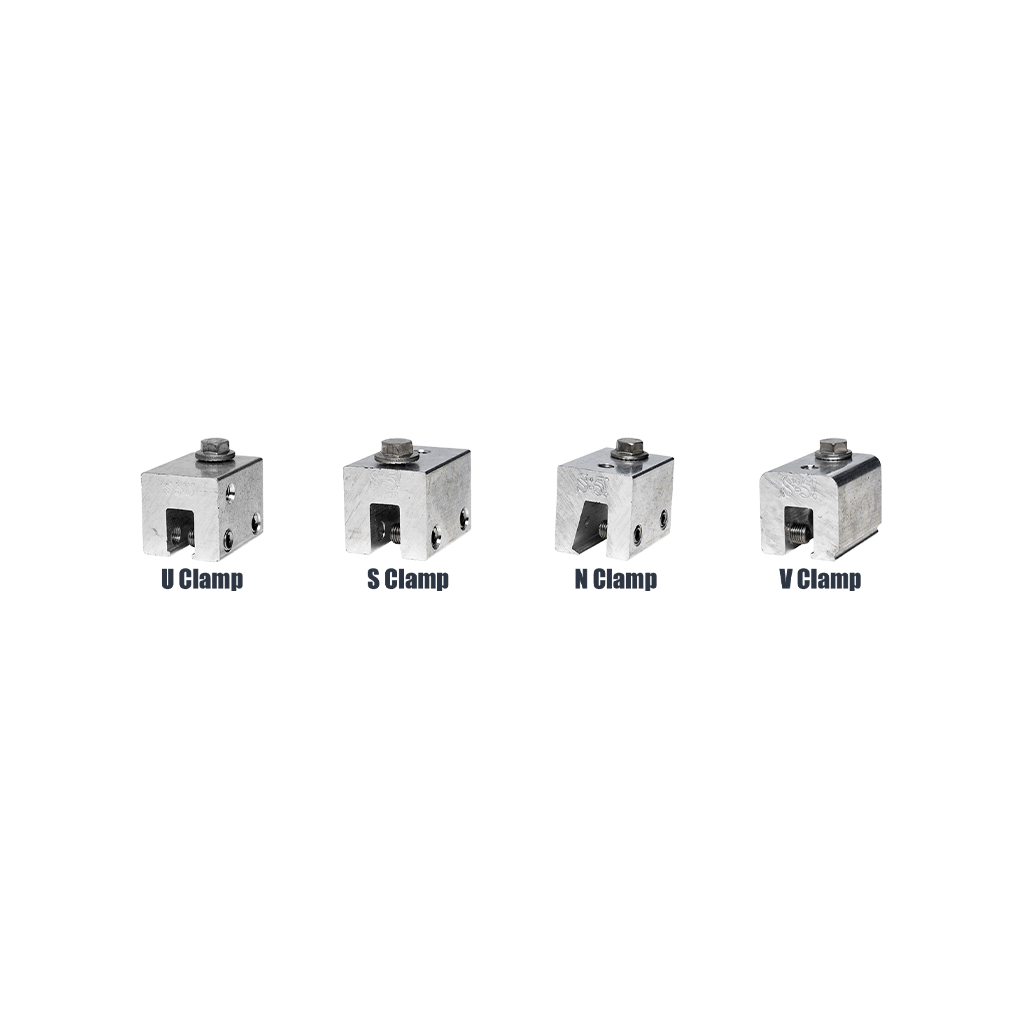

S-5! clamps offer durability and reliability on a variety of standing seam profiles. One size does not fit all – each clamp style is designed to have maximum holding strength while maintaining the roof’s weather-tightness and preserving the roof manufacturer’s warranty.
• S-5-E Clamp: designed specifically for double-folded standing seam roof profiles. Smaller than the S-5-U clamp, but every bit as strong
• S-5-N Clamp: designed for use on popular 1″ nail strip metal roof profiles
• S-5-S Clamp: extremely versatile and created for popular snap-together standing seam profiles
• S-5-T Clamp: fits certain profiles having a “T-shaped” seam configuration. Its 2-piece design allows it to be easily installed anywhere along the length of the panel seam
• S-5-U Clamp: the most popular and versatile clamp. It will fit about 85% of the standing seam profiles manufactured in North America – including most structural and architectural profiles. It can be used on vertically oriented seams, and by rotating the clamp 90°, it can also be used on most horizontal 2″ seam profiles
• S-5-V Clamp: a versatile clamp that fits vertical-folded seam profiles including most structural and architectural profiles
• S-5 Minis: a bit shorter than regular versions designed for medium-duty with one set screw rather than two. The mini is the choice for attaching all kinds of rooftop accessories like signs, satellite dishes or lighting. Note: not for use with snow retention.
| Item # | Description | Lb/Each |
|---|---|---|
| S5N | S-5! N Clamp | 0.4 |
| S5S | S-5! S Clamp | 0.4 |
| S5U | S-5! U Clamp | 0.4 |
| S5V | S-5! V Clamp | 0.4 |
| S5CR | S-5! Aluminum ColorGard Rail (8') | 3.9 |
| S5CRP | S-5! Aluminum ColorGard Rail Punched 4" OC (8') | 4.0 |
| S5COR | S-5! CorruBracket TM (bolt not included) | 0.2 |
| S5CLIPII | S-5! Snoclip II (Up to 2" seam height) | 0.2 |
| S5CLIPIII | S-5! Snoclip III | 0.3 |
| S5VER | S-5! Versa Clip | 0.1 |
| S547 | S-5! 47 Versa Bracket | 0.2 |
| S5N15 | S-5! N 1 1/2" | 0.4 |
| S5CLIPIIRETRO | S-5! Snoclip II Retrofit | 0.1 |
| S5CLIPIIIRETRO | S-5 Snoclip III Retrofit | 0.2 |
| S5E | S-5! E Clamp | 0.2 |
| S5T | S-5T Clamp | 0.5 |
| S5PV | S-5! Solar Clip PV Kit | 0.1 |
| 10S5B | 10 mm SS Bolt 5/8 inch long | 0.1 |
| S5TMINI | S-5! T Mini | 0.3 |
| S5UMINI | S-5! U Mini | 0.2 |
| S5B | S-5! B Clamp | 0.4 |
| S5U-H90 | S-5! Universal H90 Clamp | 0.3 |
| S5U-H90MINI | S-5! Universal H90 Mini Clamp | 0.1 |
| S5Z | S-5! Z Clamp | 0.4 |
| 8M16MFB | 8mm x 16mm Flange Bolt - 47 Versa Bracket | 0.01 |
| 8MMNUT | 8mm SS Flanged Nut | 0.02 |
