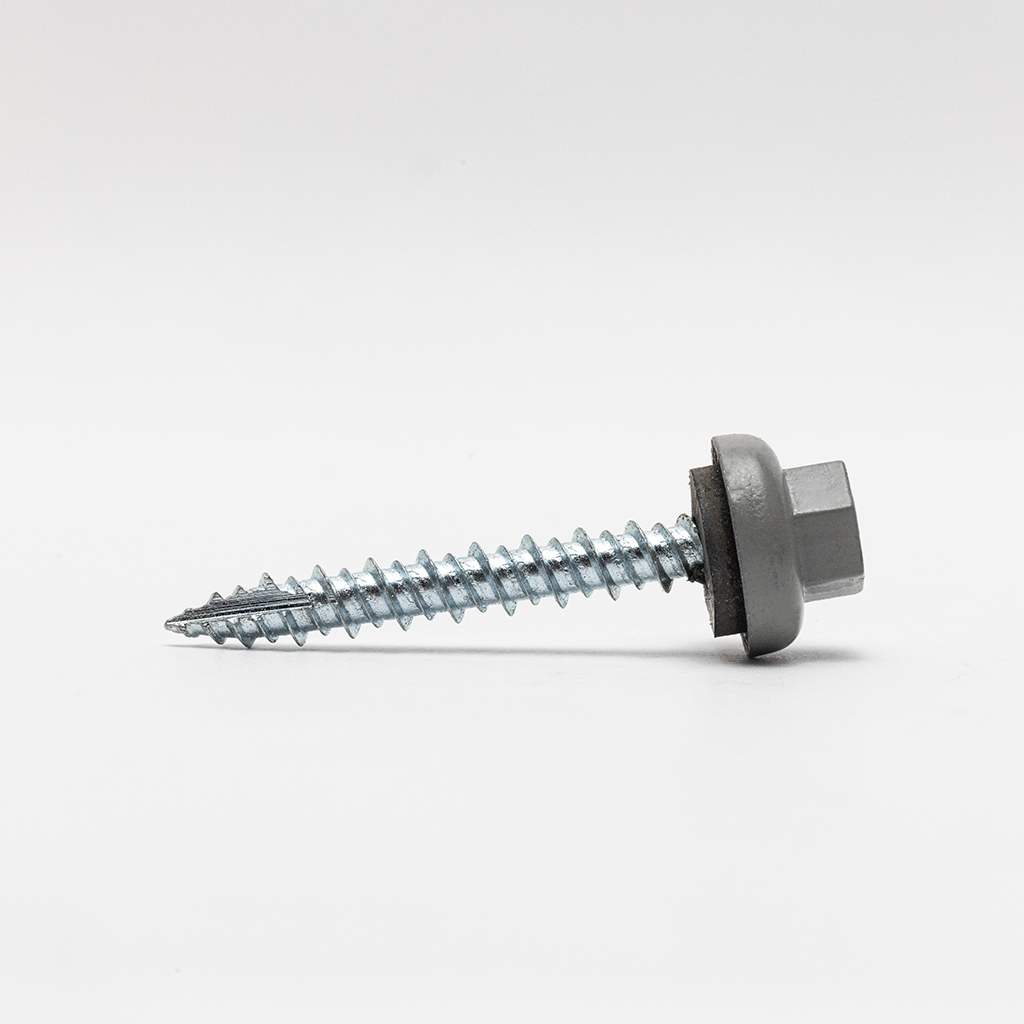

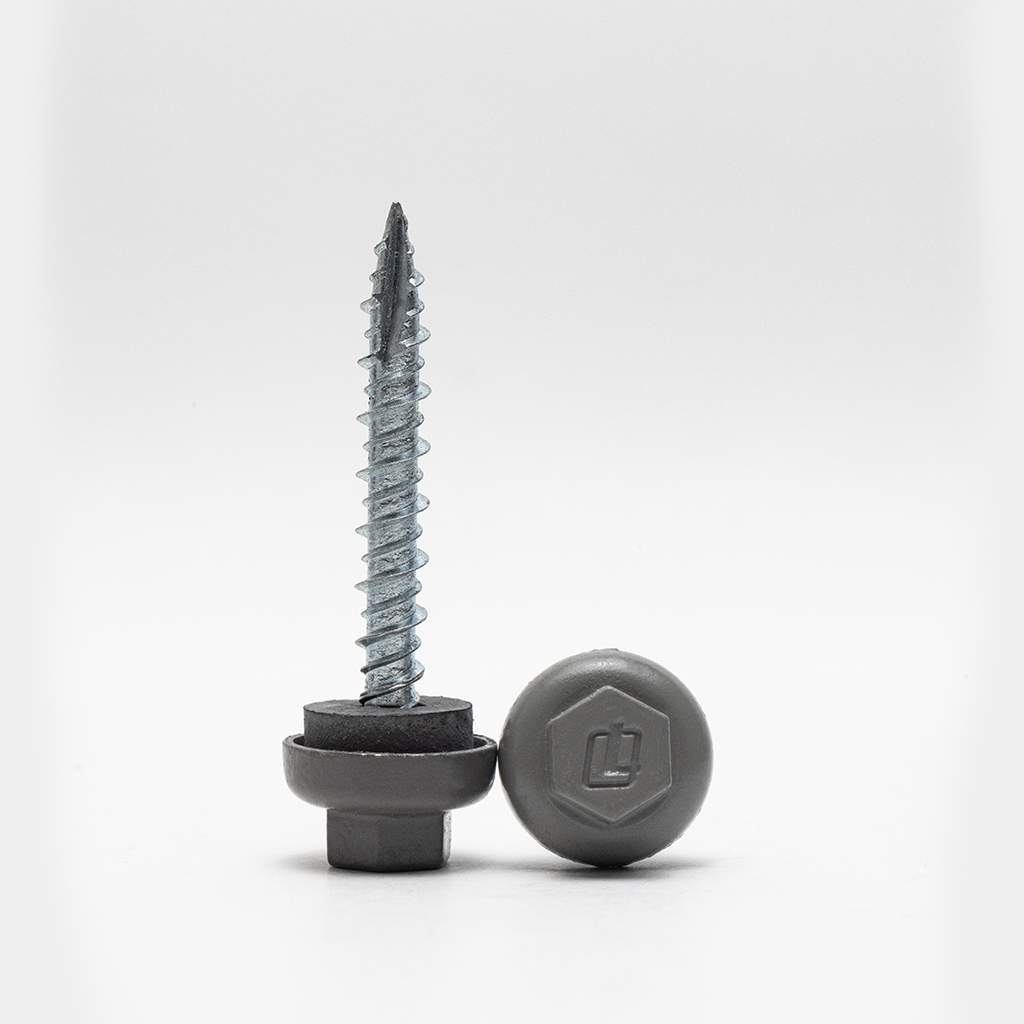

Ensuring a weather tight seal for metal to wood with the ProZ is easy. ProZ features a strong cap that withstands the toughest installation conditions and is compatible with all metal finishes. The design of the washer head reduces overdriving and the zinc aluminum alloy cap will never red rust. The quality of the ProZ line, available in 40 plus quick ship color choices, is backed by Levi’s 50 year warranty.

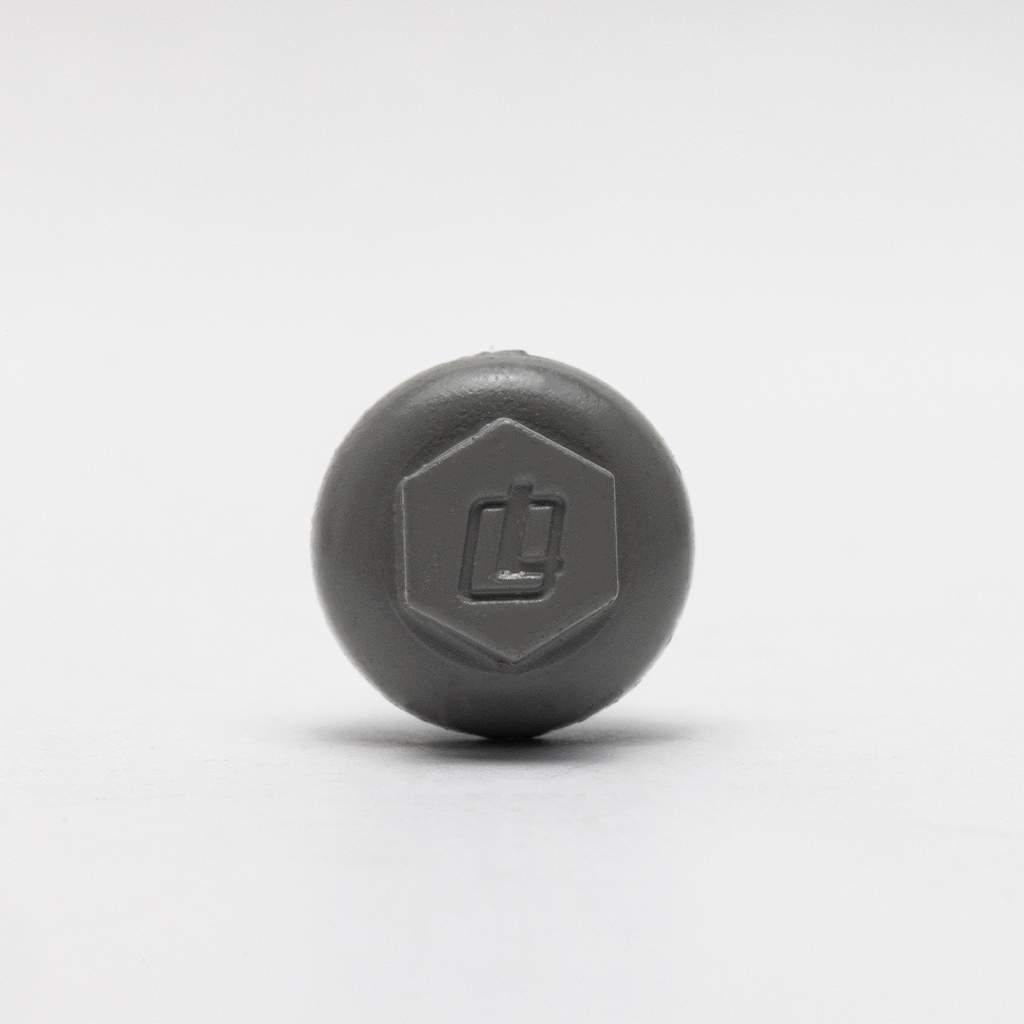

• No Red Rust-Zinc Aluminum Alloy Cap
• 50 year warranty

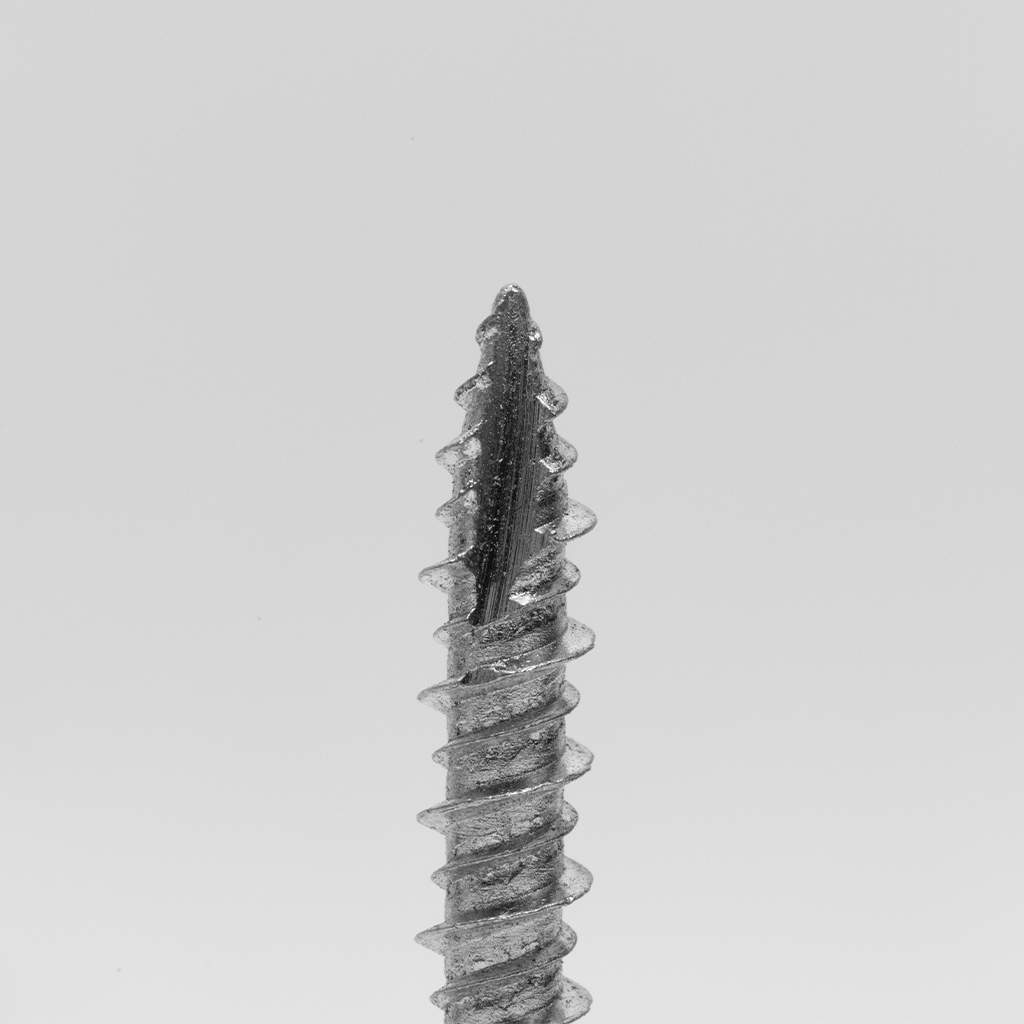

• Hi-Lo threads
• Long-lasting EPDM Washer
• Fastens metal to wood
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 101PZ | #10 x 1" | 5/16 Hex | T-17 | 2500 | 34.12 |
| 10112PZ | #10 x 1 - 1/2" | 5/16 Hex | T-17 | 2000 | 31.56 |
| 102PZ | #10 x 2" | 5/16 Hex | T-17 | 1500 | 27.32 |
| 10212PZ | #10 x 2 - 1/2" | 5/16 Hex | T-17 | 1000 | 20.83 |
| 103PZ | #10 x 3" | 5/16 Hex | T-17 | 500 | 23.35 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 7/16" OSB | Full | 197 |
| 1/2" Ply | Full | 345 |
| 3/4" Ply | Full | 468 |
| 2 x Yellow Pine | 1" | 657 |
| 2 x Spruce Pine Fir | 1" | 682 |
| 2 x Spruce Pine Fir | 1 - 1/2" | 736 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 635 |
| AZ55 Galvalume | 26 | 0.018 | 828 |
| AZ55 Galvalume | 24 | 0.024 | 997 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1860 | 2446 | 89 |
