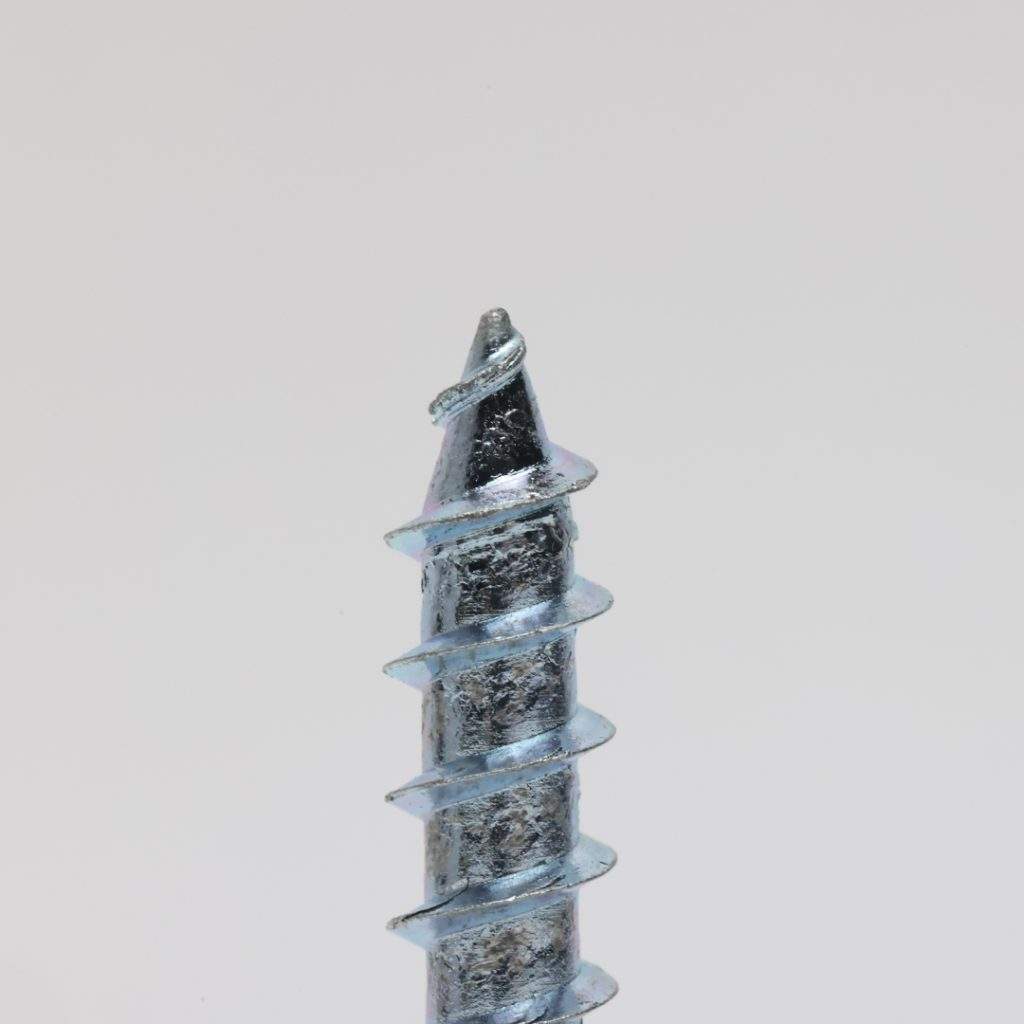

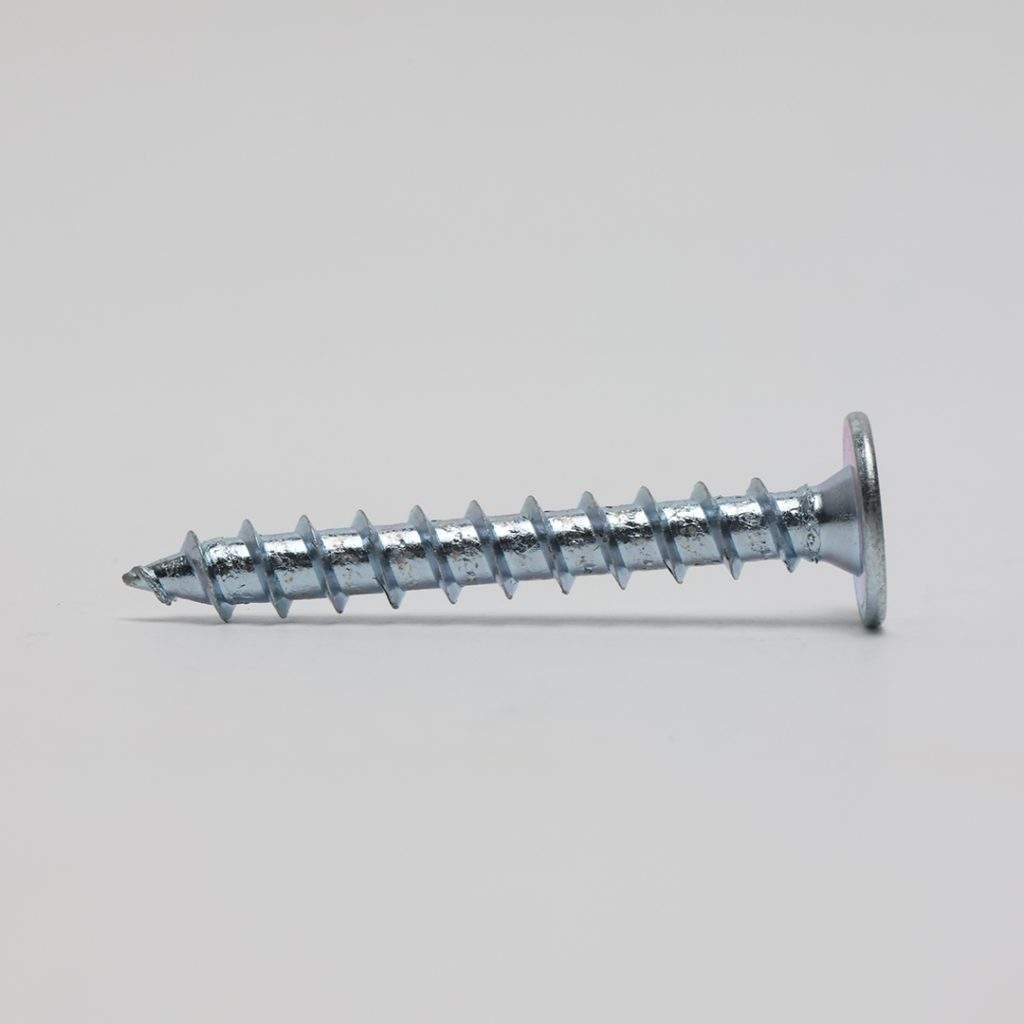

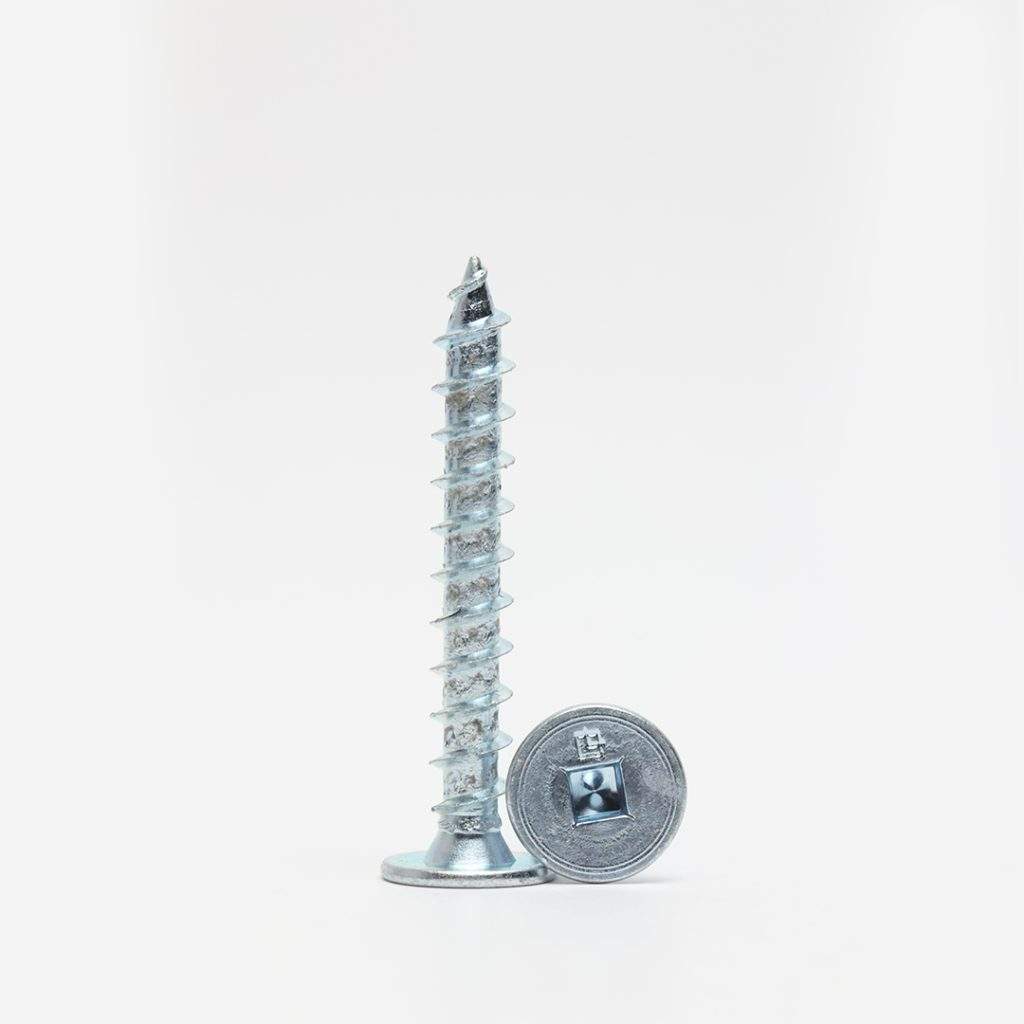

This ultra-thin pancake head fastener is designed to fasten flush and lay flat without dimpling or showing through the panel. Available in three sizes with a SP drill point and #2 square, low profile head style.
• Designed to fasten flush and lay flat without dimpling or showing through the panel

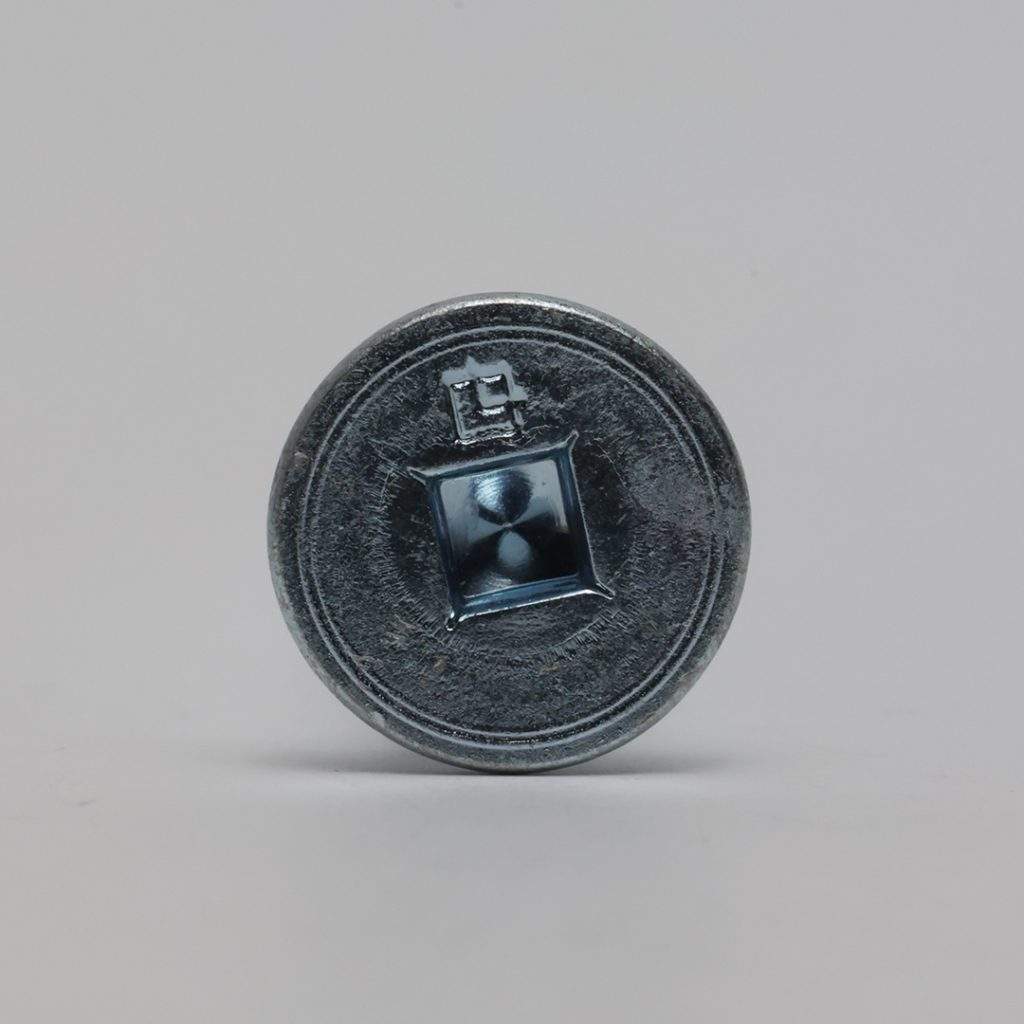

• Ultra-thin pancake head
• Fastens Metal to Wood
• One square drive bit per box
Previous
Next
Low Profile
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 101PHLP | #10 x 1" | #2 Square | SP | 5,000 | 30.5 |
| 10112PHLP | #10 x 1-1/2" | #2 Square | SP | 2,500 | 26.8 |
| 102PHLP | #10 x 2" | #2 Square | SP | 2,000 | 23.2 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 3/4" Ply | Full | 484 |
| 1/2" Ply | Full | 280 |
| 7/16" OSB | Full | 196 |
| 2 x Yellow Pine | 1" | 677 |
| 2 x Spruce Pine Fir | 1" | 814 |
| 2 x Spruce Pine Fir | 1-1/2" | 909 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 465 |
| AZ55 Galvalume | 26 | 0.018 | 649 |
| AZ55 Galvalume | 24 | 0.024 | 978 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1,750 | 2,544 | 83 |
