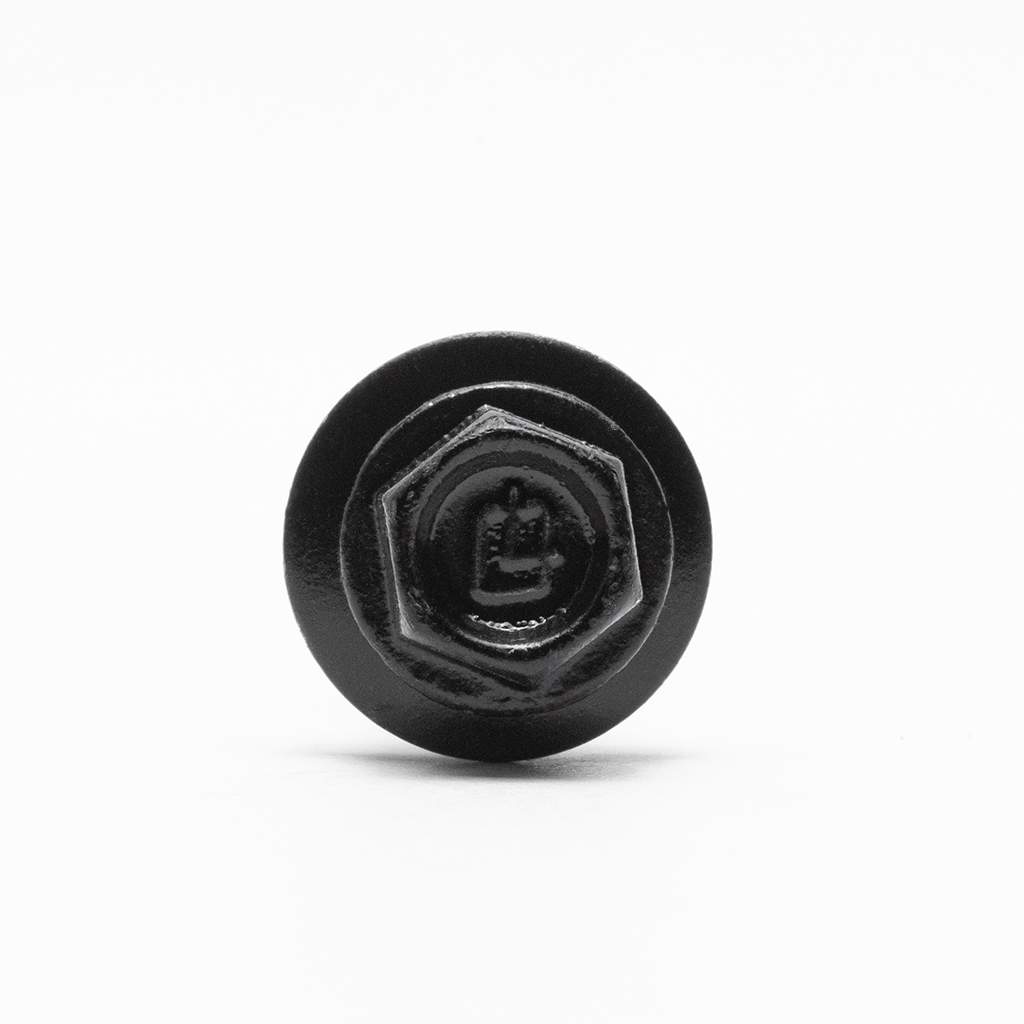

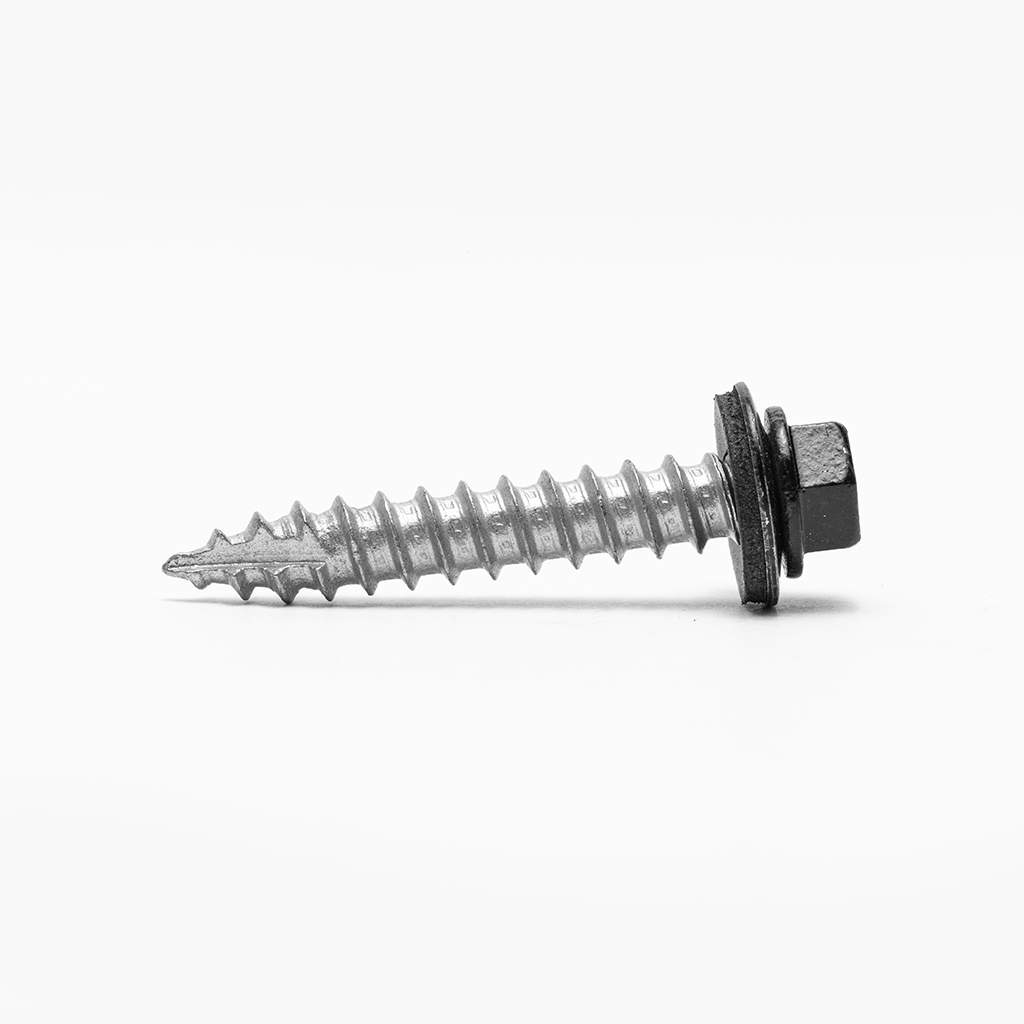

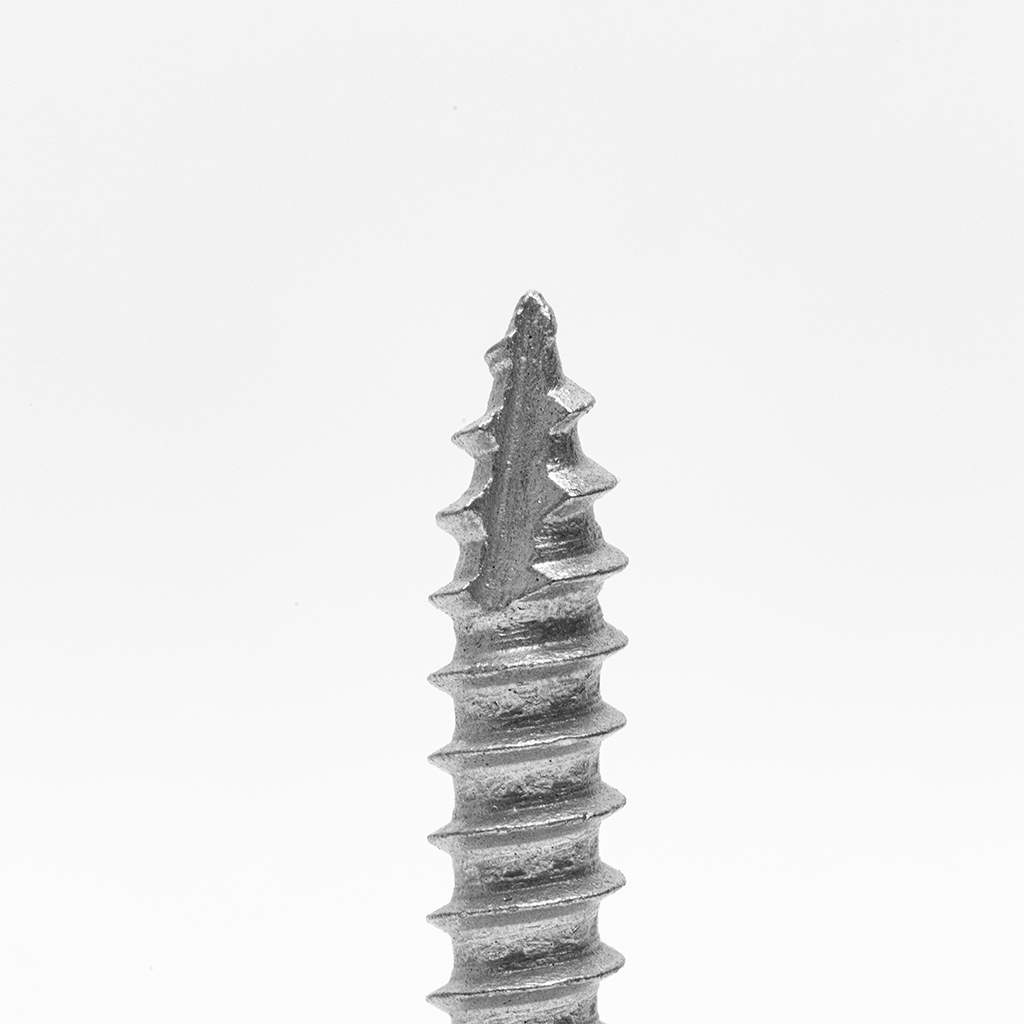

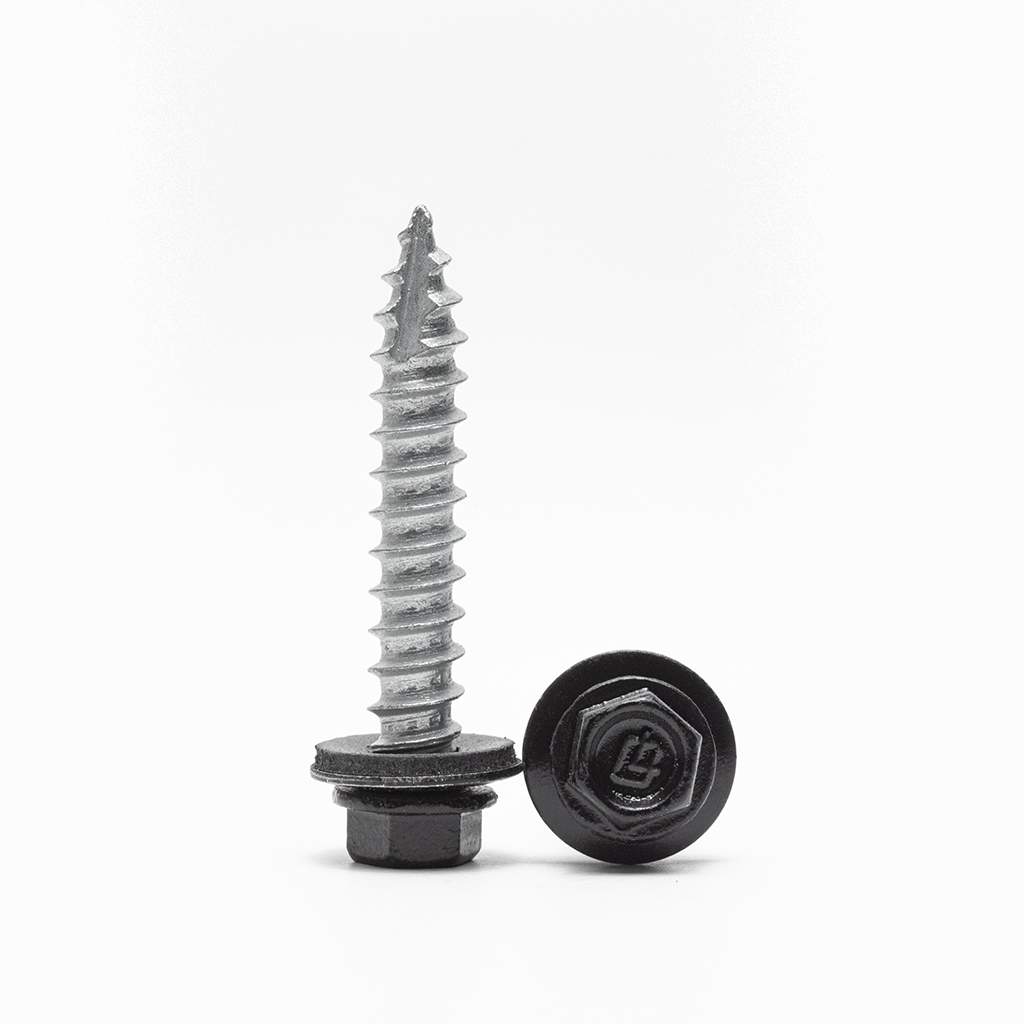

Ensure superior holding power for OSB and plywood construction with the mechanical galvanized #14 roofing screw. Great pull out resistance is this fastener’s strength. Tight sealing EPDM washer and type 17 point. Levi’s can quick ship so your next project remains on time.
• Mechanical Galvanized
• Galvanized EPDM washer 14MM OD
• Fastens metal to wood
• Use for OSB and other plywoods. Great pull out resistance
Previous
Next
| Part # | Description | Head Style | Drill Pt | Pcs/BX | Lbs/BX |
|---|---|---|---|---|---|
| 141FG | #14 x 1" | 5/16" Hex | T-17 | 2,000 | 28.6 |
| 14112FG | #14 x 1-1/2" | 5/16" Hex | T-17 | 1,500 | 27.8 |
| 142FG | #14 x 2" | 5/16" Hex | T-17 | 1,000 | 23.4 |
| 14212FG | #14 x 2-1/2" | 5/16" Hex | T-17 | 500 | 14.2 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 7/16" OSB | Full | 209 |
| 1/2" Ply | Full | 449 |
| 3/4" | Full | 621 |
| 2 x Yellow Pine | 1" | 992 |
| 2 x Spruce Pine Fir | 1" | 1,294 |
| 2 x Spruce Fir | 1 - 1/2" | 1,597 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 535 |
| AZ55 Galvalume | 26 | 0.018 | 743 |
| AZ55 Galvalume | 24 | 0.024 | 1,052 |
| Shear | Tensile | Torsional |
|---|---|---|
| 2,980 | 4,492 | 175 |
