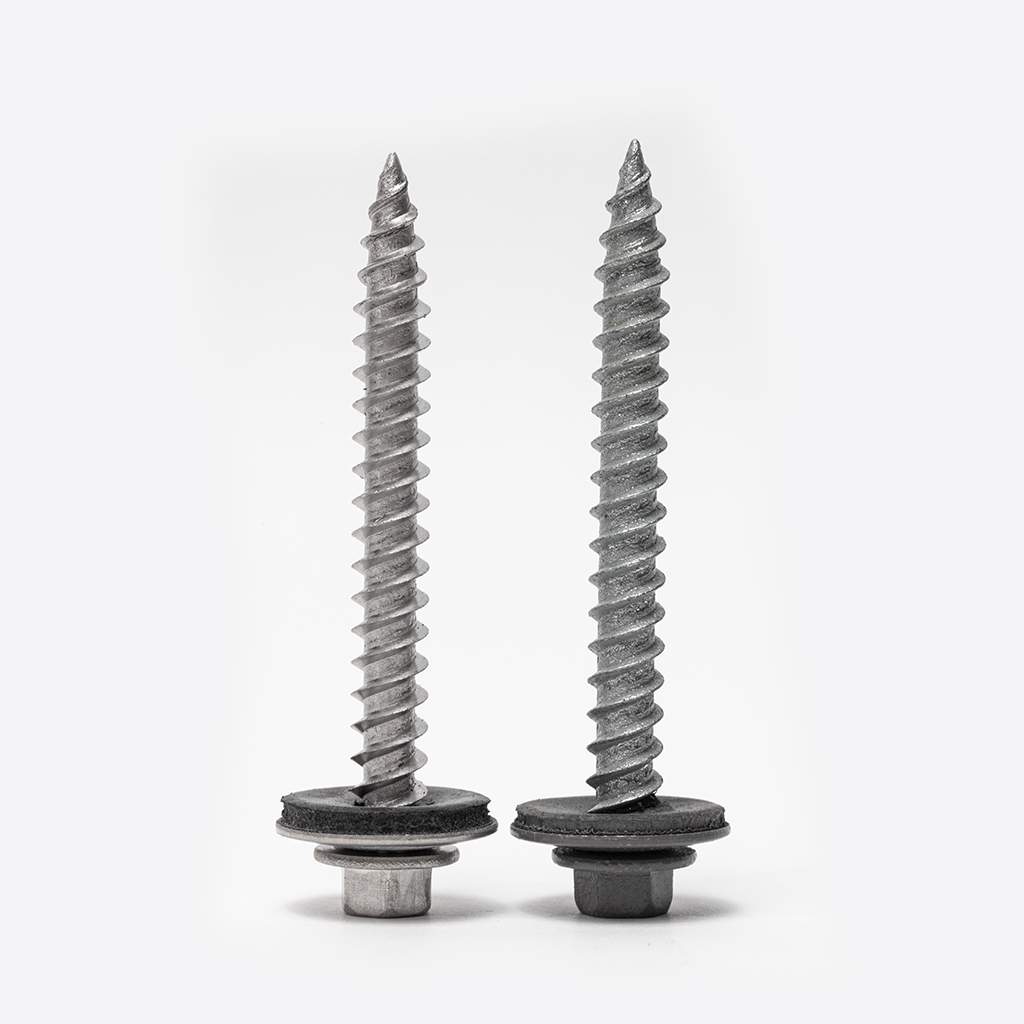

Choose from mechanical galvanized or 300 series steel options inĀ
1-1/2″, 2″ or 2-1/2″ sizes when looking to replace nails or screwsĀ
that have failed. The sharp point drills easily and the oversized 5/8″ EPDM washer seals tightly. Fasten aluminum panels effortlessly using the SS screw. Quick ship colors available to match toĀ
your roof color.Ā
ā¢ Mechanical GalvanizedĀ
ā¢Ā 300 Series Stainless Steel
ā¢Ā EPDM washer 5/8″ OD
ā¢Ā Replace failing nails or screws

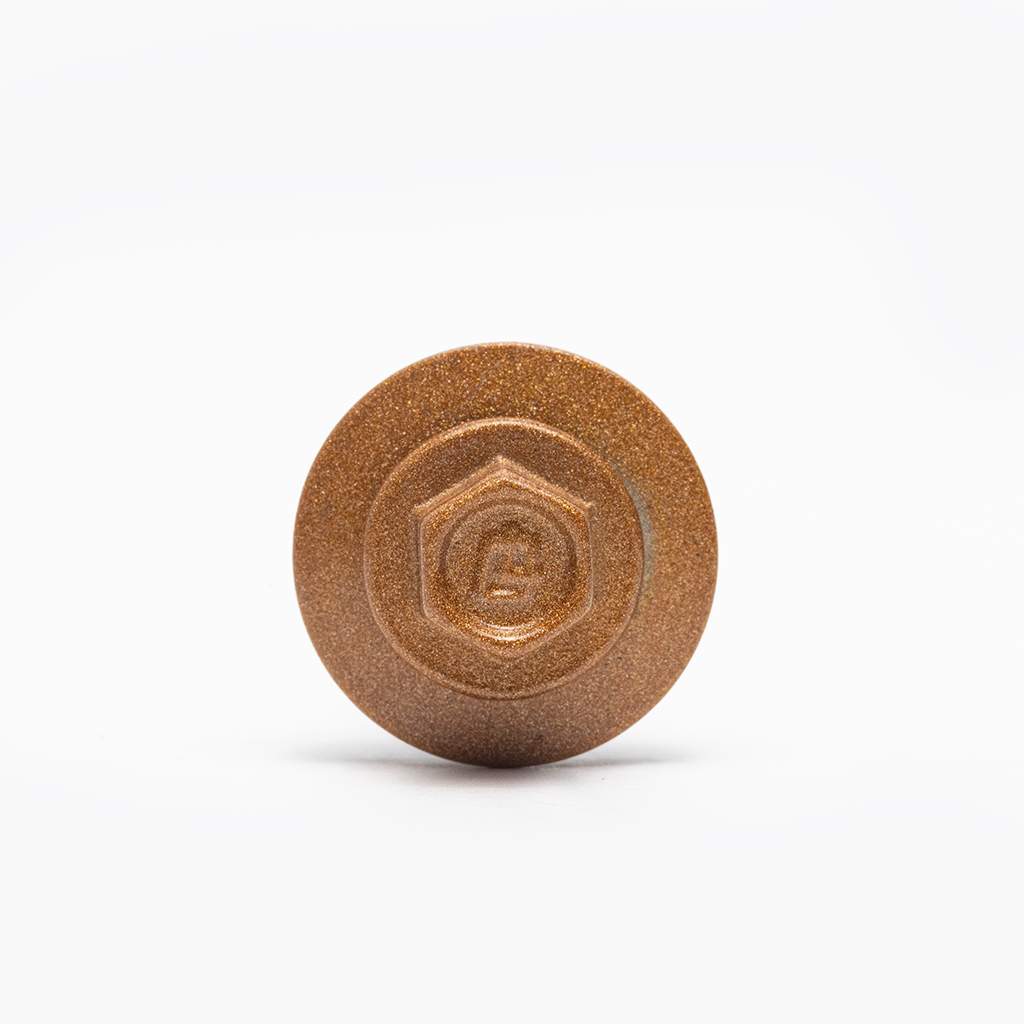

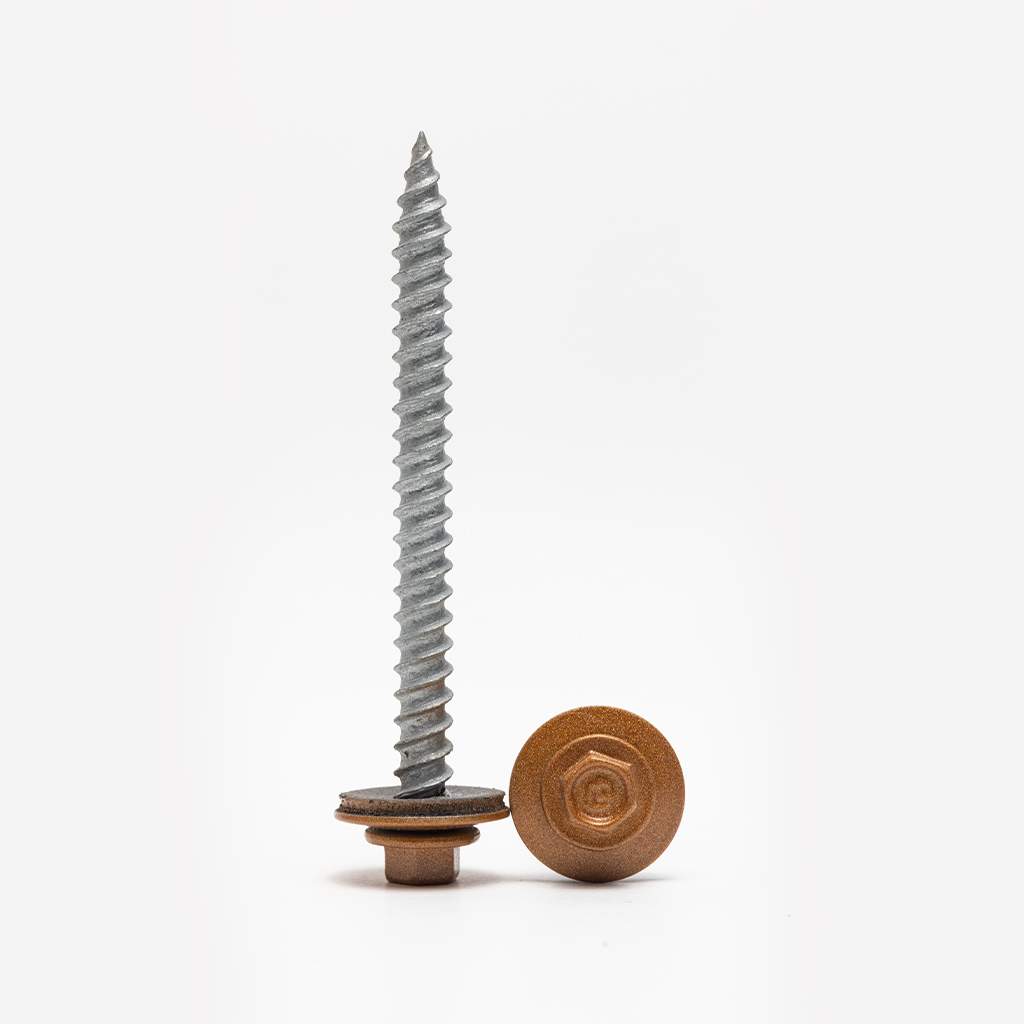

ReGrip #12
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 12112RG | #12 x 1-1/2" | 1/4 Hex | SP | 2000 | 30.6 |
| 122RG | #12 x 2" | 1/4 Hex | SP | 1500 | 28.7 |
| 12212RG | #12 x 2-1/2" | 1/4 Hex | SP | 1000 | 22.6 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 3/4" Ply | Full | 545 |
| 1/2" Ply | Full | 302 |
| 7/16" OSB | Full | 189 |
| 2 x Yellow Pine | 1" | 764 |
| 2 x Spruce Pine Fir | 1" | 661 |
| 2 X Spruce Pine Fir | 1-1/2" | 1037 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 484 |
| AZ55 Galvalume | 26 | 0.018 | 666 |
| AZ55 Galvalume | 24 | 0.024 | 942 |
| Shear | Tensile | Torsional |
|---|---|---|
| 2650 | 3332 | 157 |

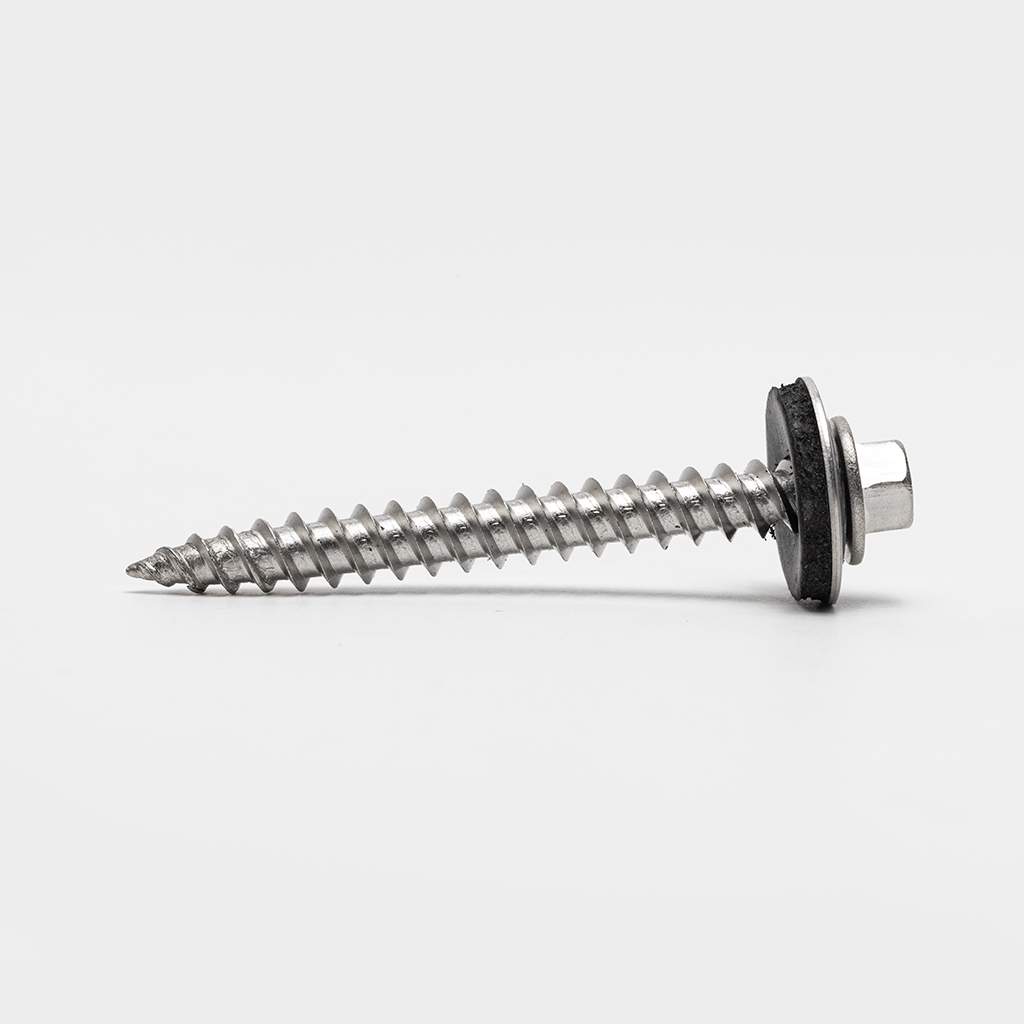

ReGrip #12 Stainless Steel
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 12112RGSS | #12 x 1-1/2" | 1/4 Hex | SP | 2000 | 31.4 |
| 122RGSS | #12 x 2" | 1/4 Hex | SP | 1500 | 28.7 |
| 12212RGSS | #12 x 2-1/2" | 1/4 Hex | SP | 1000 | 22.8 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 3/4" Ply | Full | 528 |
| 1/2" Ply | Full | 338 |
| 7/16" OSB | Full | 191 |
| 2 x Yellow Pine | 1" | 756 |
| 2 x Spruce Pine Fir | 1" | 745 |
| 2 x Spruce Pine Fir | 1-1/2" | 926 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 427 |
| AZ55 Galvalume | 26 | 0.018 | 622 |
| AZ55 Galvalume | 24 | 0.024 | 952 |
| Shear | Tensile | Torsional |
|---|---|---|
| 2000 | 2206 | 98 |
