Low Profile Finish – For Metal to Wood

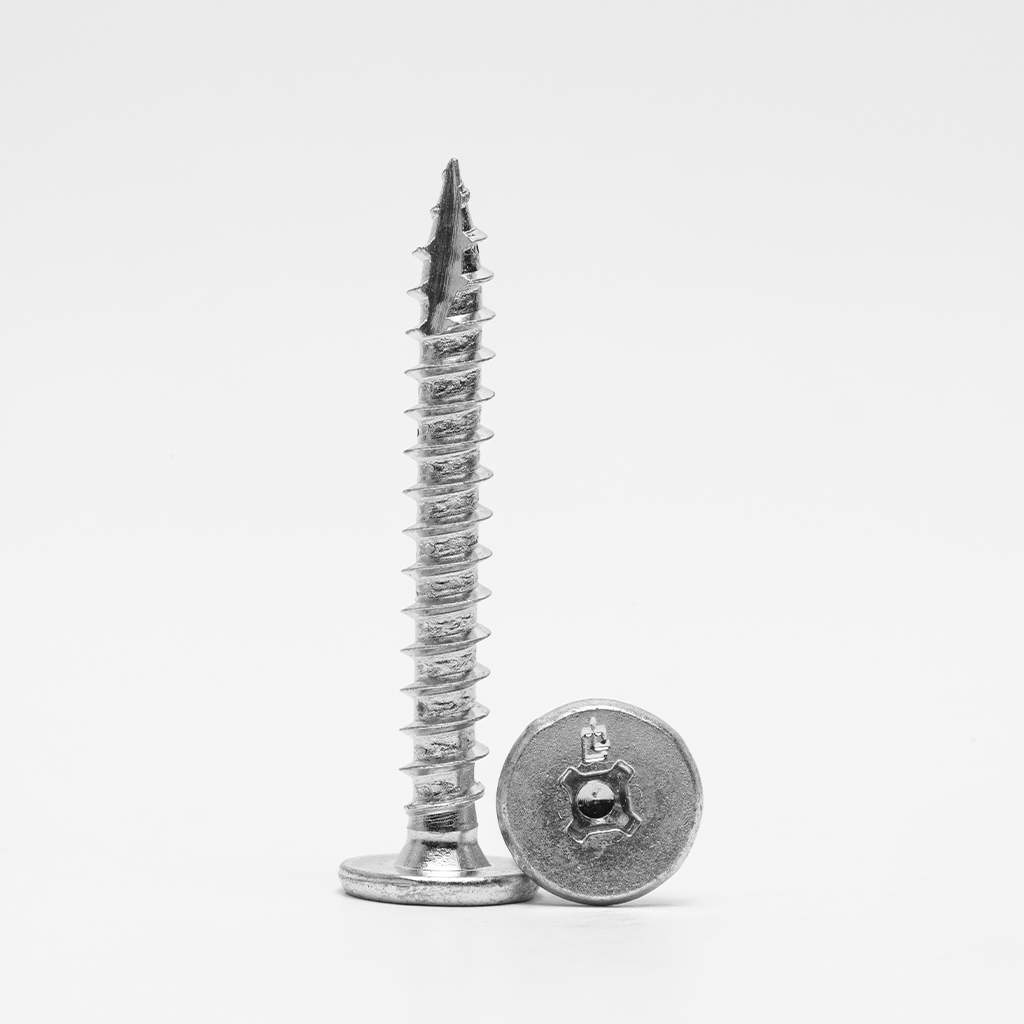

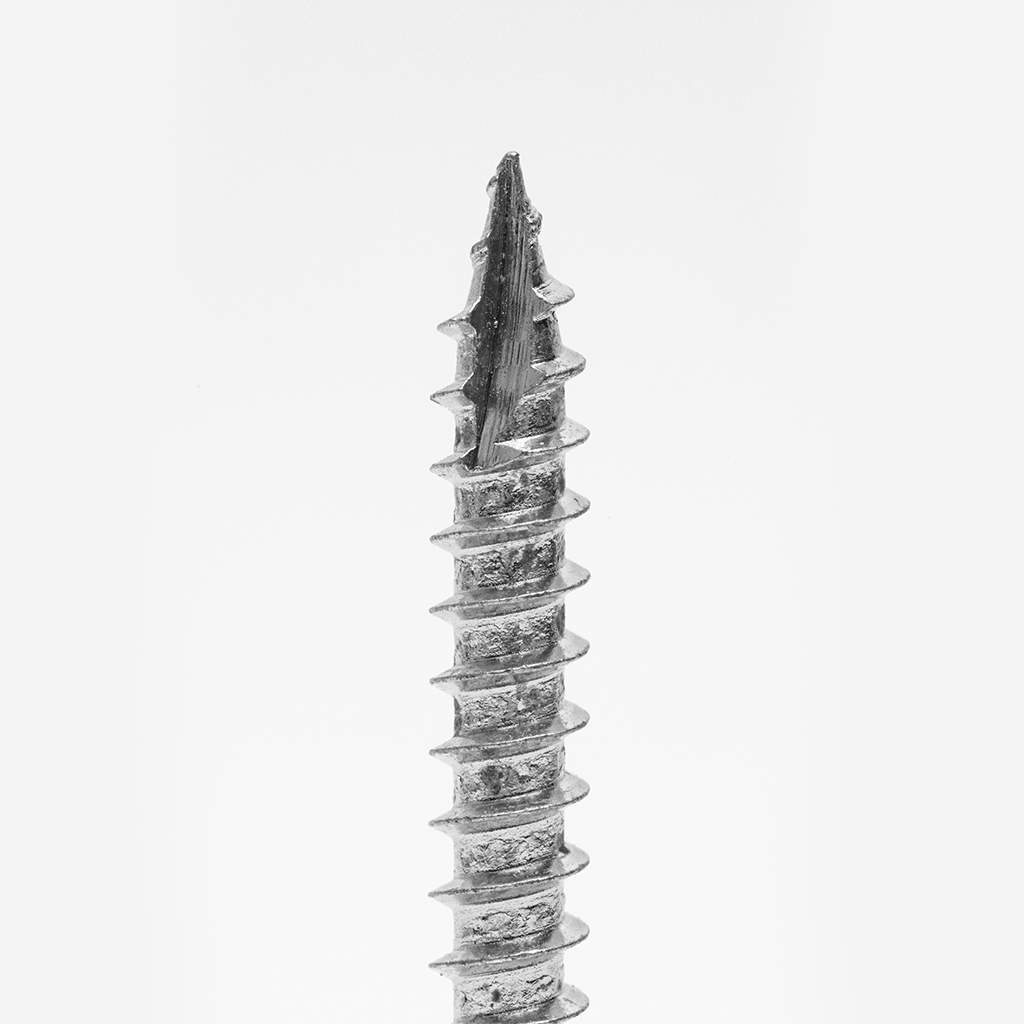

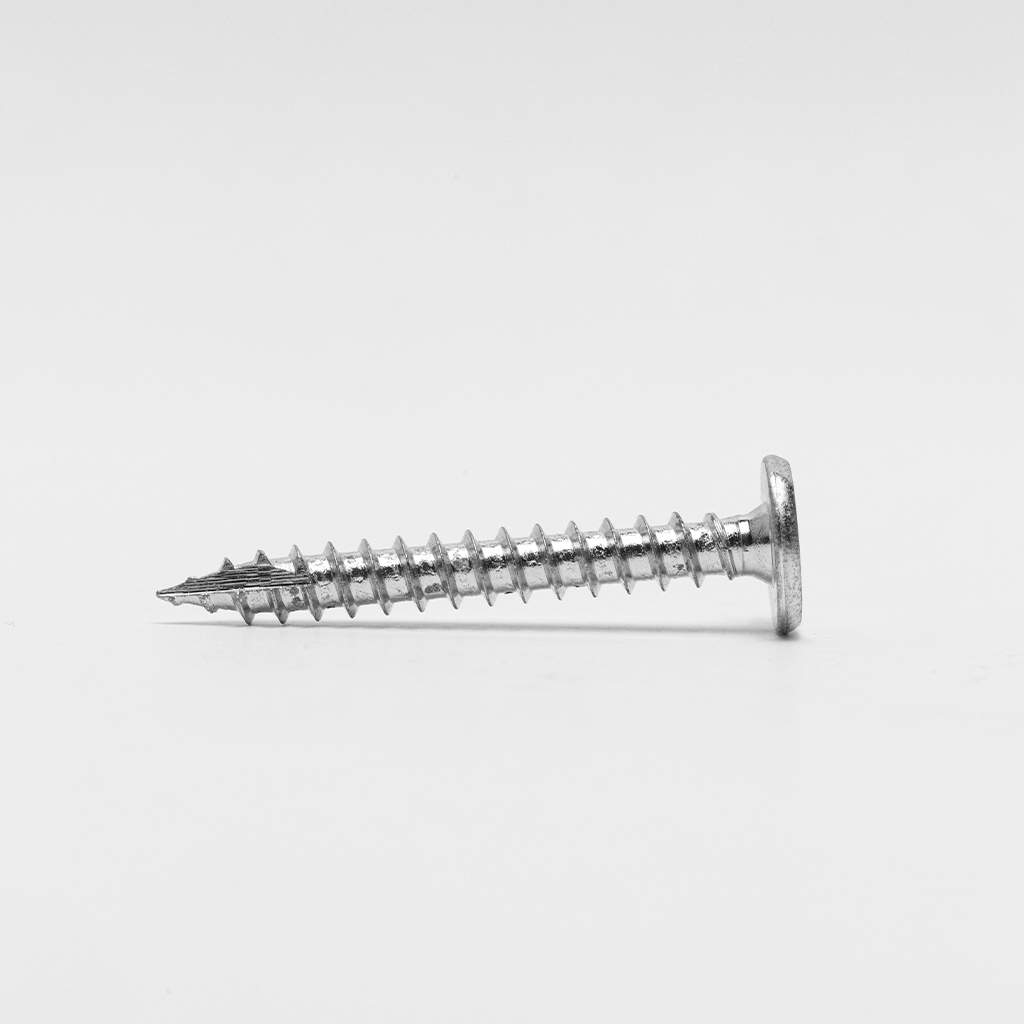

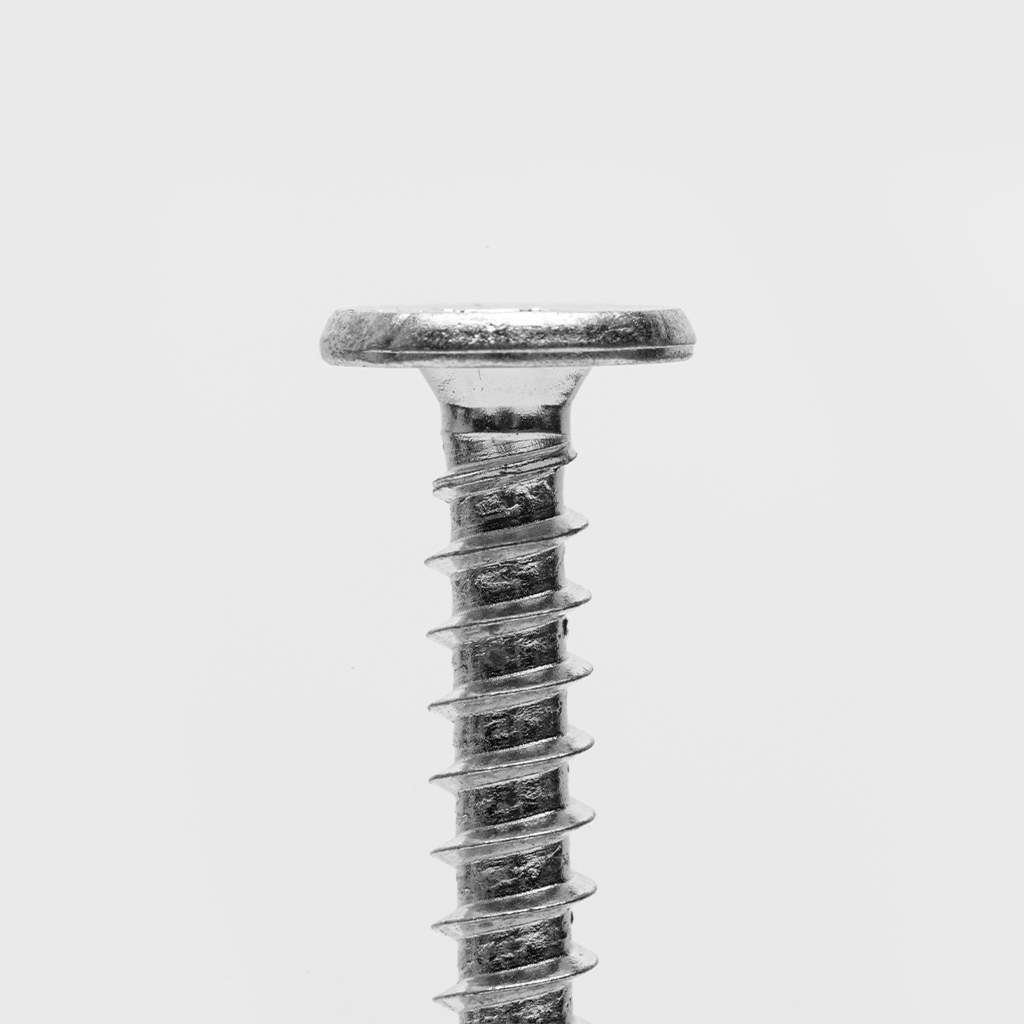

Choose the Zinc plated Pancake Head to achieve a low-profile, flush finish. T-17 drill points available in multiple lengths. In-stock colors ship quickly or match to your roof color.
• Designed to fasten standing seam clips
• Fastens metal to wood or metal to metal
• One square drive bit per box
• Available in any color! Ask about in-stock colors
| Part # | Description | Head Style | Drill Pt | Pcs/Bx | Lbs/Bx |
|---|---|---|---|---|---|
| 101PH17 | #10 x 1" | Phillips/Square | T-17 | 5000 | 33.9 |
| 10112PH17 | #10 x 1-1/2" | Phillips/Square | T-17 | 2500 | 23.6 |
| 102PH17 | #10 x 2" | Phillips/Square | T-17 | 2000 | 24.2 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 3/4" Ply | Full | 464 |
| 1/2" Ply | Full | 306 |
| 7/16" OSB | Full | 228 |
| 2 x Yellow Pine | 1" | 704 |
| 2 x Spruce Pine Fir | 1" | 653 |
| 2 x Spruce Pine Fir | 1 - 1/2" | 1102 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 467 |
| AZ55 Galvalume | 26 | 0.018 | 626 |
| AZ55 Galvalume | 24 | 0.024 | 992 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1500 | 1930 | 70 |
