FASTEN METAL TO WOOD WITH HIGH-QUALITY SCREWS

#10 HI-LO

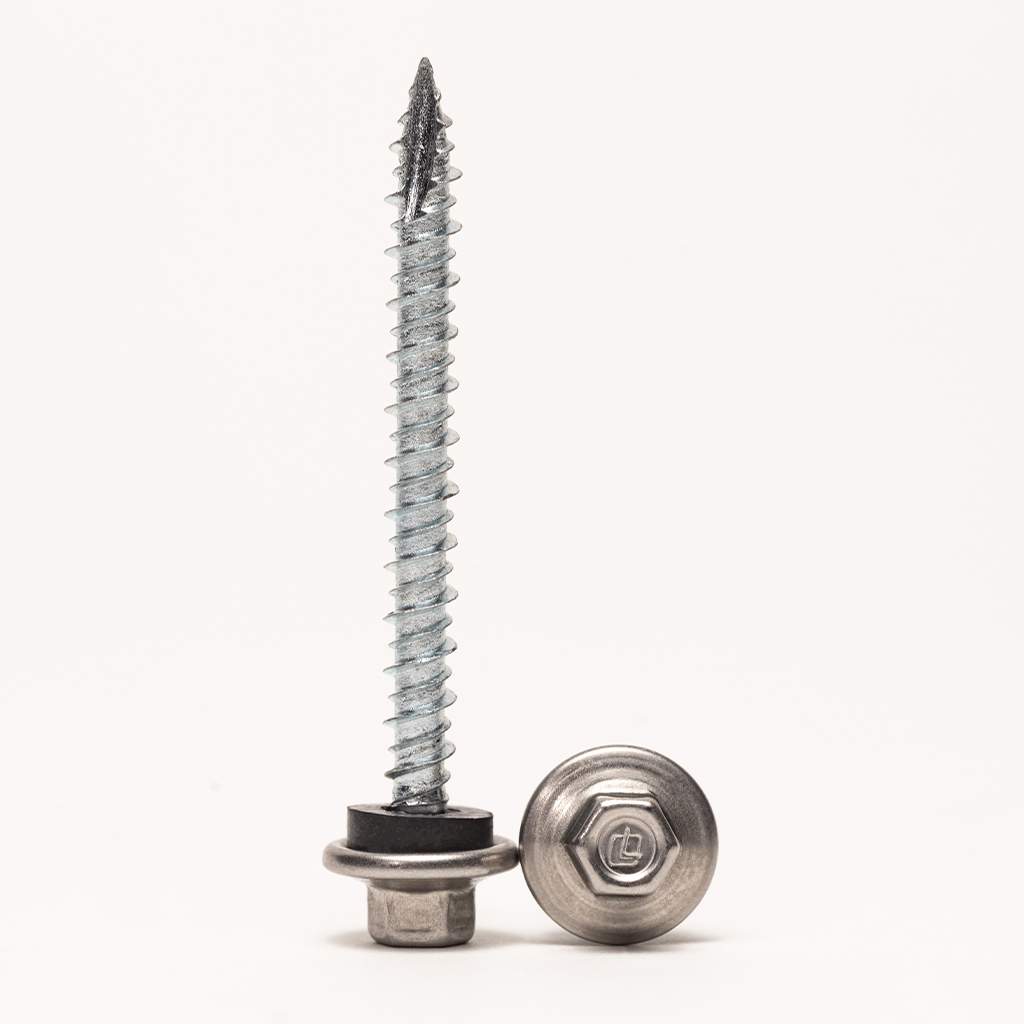

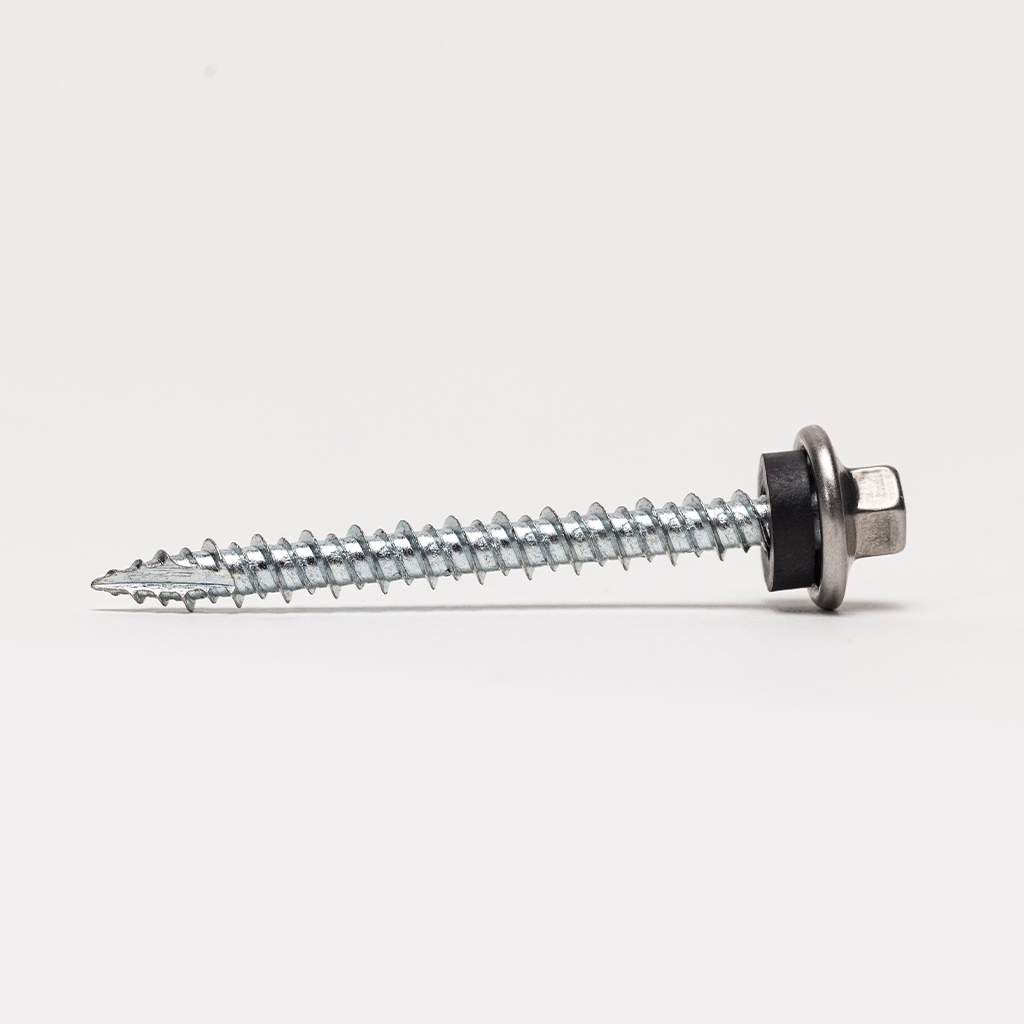

ProCap features #10 Hi-Lo threads in the popular 1/4″ drive size. The 304 stainless steel cap withstands tough weather elements and is economical in pricing. Levi’s guarantees their rust-free stainless steel cap ProCap line, available in 40 plus quick ship colors, and backed with our 40 year warranty.

• 304 Stainless steel cap with a zinc plated carbon steel shank

• EPDM washer

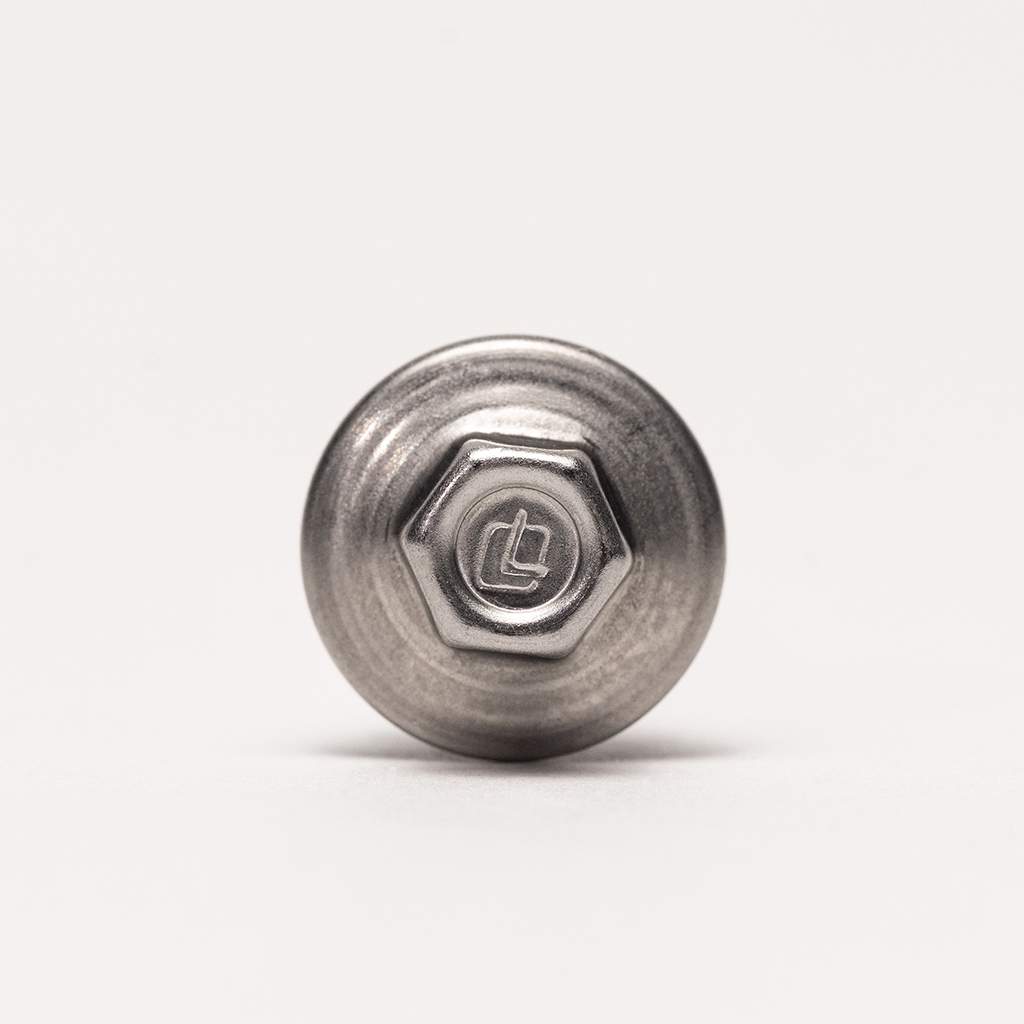

• Stainless steel cap

• Fastens metal to wood

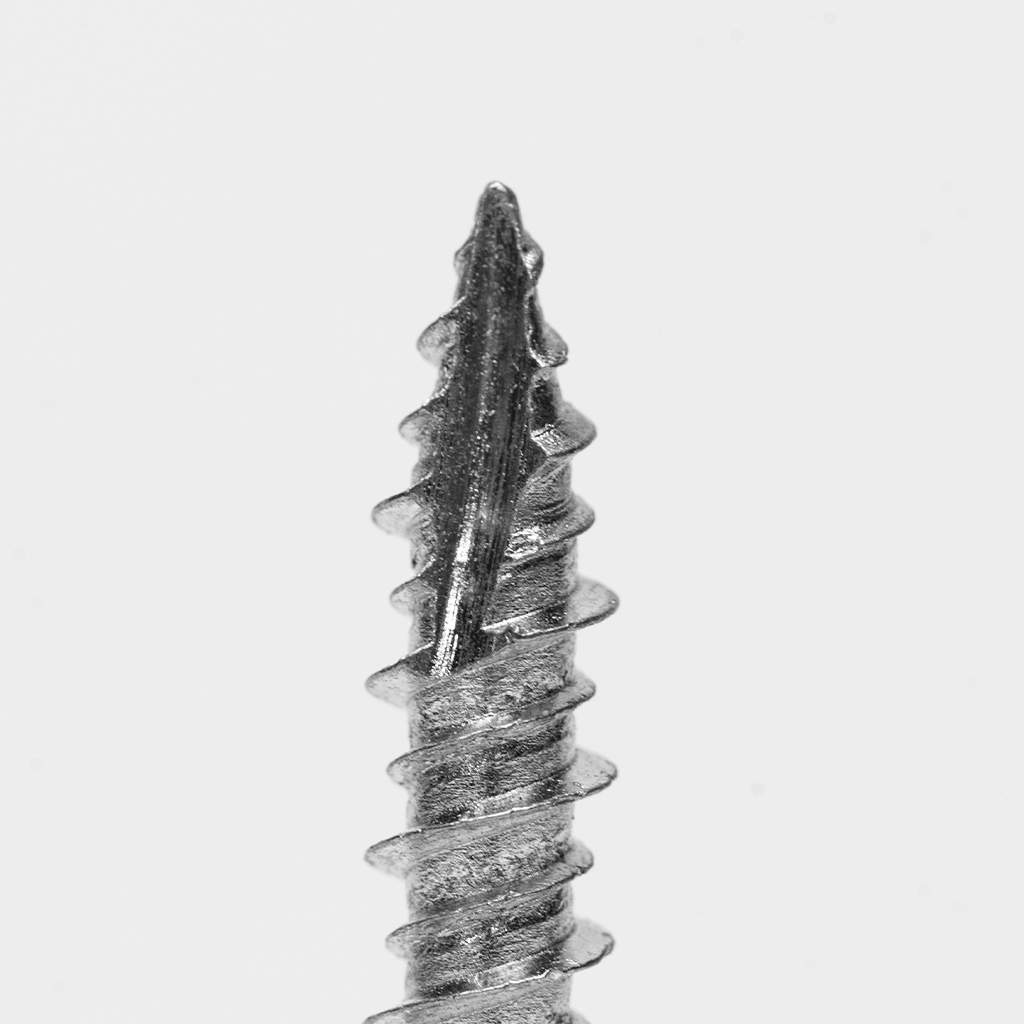

• Hi-Lo threads

PART#	DESCRIPTION	HEAD STYLE	DRILL PT	PCS/BOX	LBS/BOX
101PC	#10 x 1"	1/4" Hex	Sharp Point	3,000	28.1
10112PC	#10 x 1 - 1/2"	1/4" Hex	T-17	2,500	27.9
102PC	#10 x 2"	1/4" Hex	T-17	2,000	27.5
10212PC	#10 x 2 - 1/2"	1/4" Hex	T-17	1,500	26.1
103PC	#10 x 3"	1/4" Hex	T-17	1,000	19.7

SUBSTRATE	PENETRATION	PULL-OUT STRENGTH
3/4" Ply	Full	468
1/2" Ply	Full	346
7/16" OSB	Full	221
2 x Yellow Pine	1"	627
2 x Spruce Pine Fir	1"	607
2 x Spruce Pine Fir	1 - 1/2"	810

SHEAR	TENSILE	TORSIONAL
1,890	2,611	82

SUBSTRATE	GAUGE	THICKNESS	PULL-OVER STRENGTH
AZ55 Galvalume	29	.014	423
AZ55 Galvalume	26	.018	690
AZ55 Galvalume	24	.024	813

Meet the latest addition to the ProCap™ family. The ProCap™ #10 Hi-Lo MINI-DRILLER™ has all of the specs that make the ProCap™ #10 Hi-Lo the go-to fastener, but with the added MINI-DRILLER™ point. The MINI-DRILLER™ makes easy work of driving through metal panels, while the Hi-Lo thread provides superior pull-out strength in metal to wood applications.

• 304 Stainless steel cap with a zinc-plated carbon steel shank
