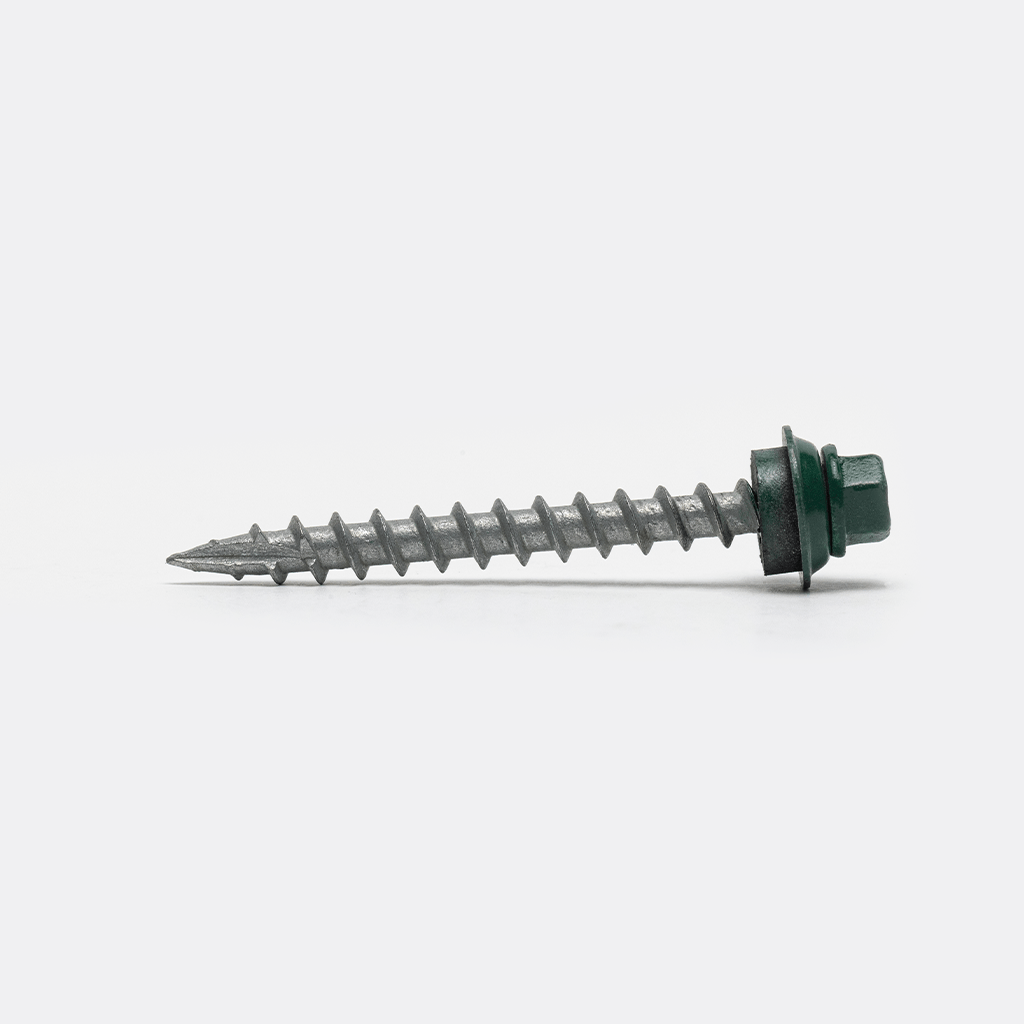

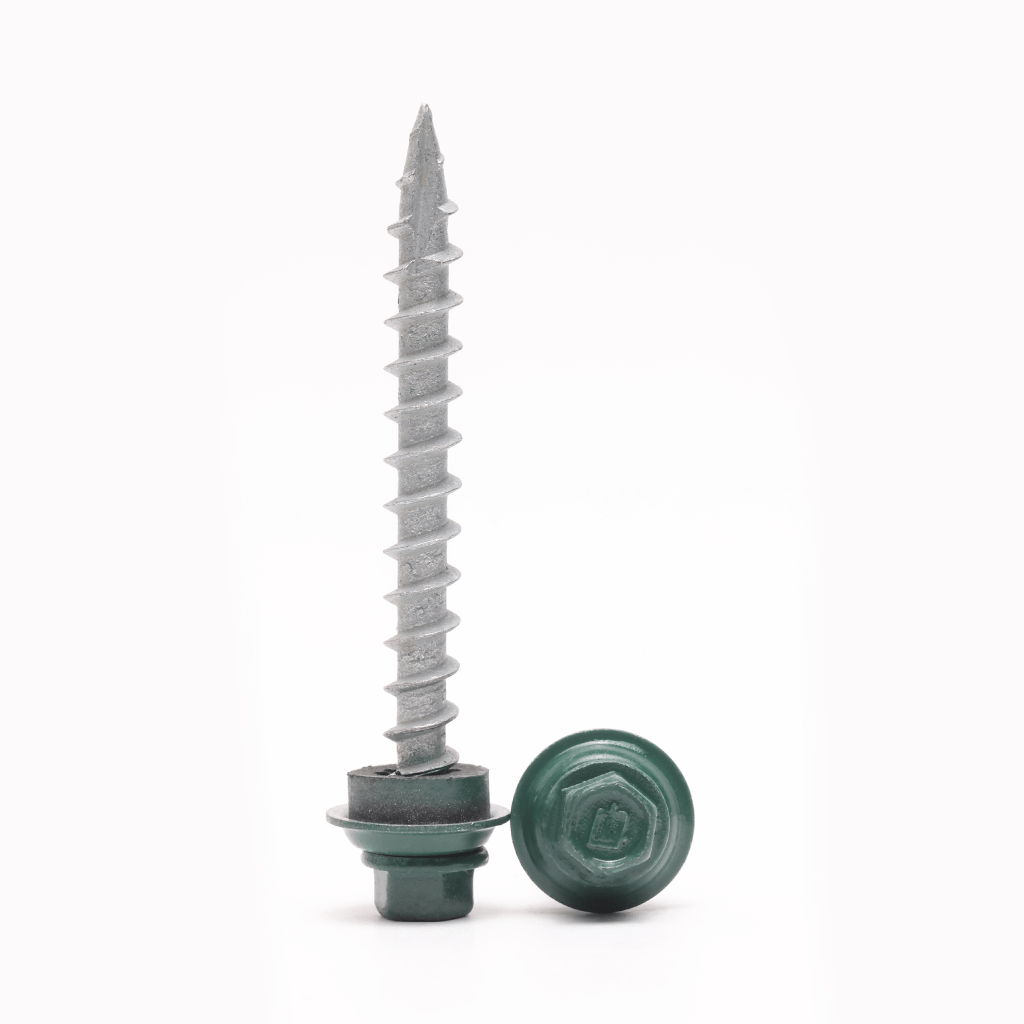

The TuffGrip™ #12 is the right screw to get a good grip in metal to OSB applications. The #12 shank and aggressive threads means greater pull-out strength. The non-bonded complete cover washer perfectly seals out the elements, preserving the washer integrity.
• Best for metal to OSB

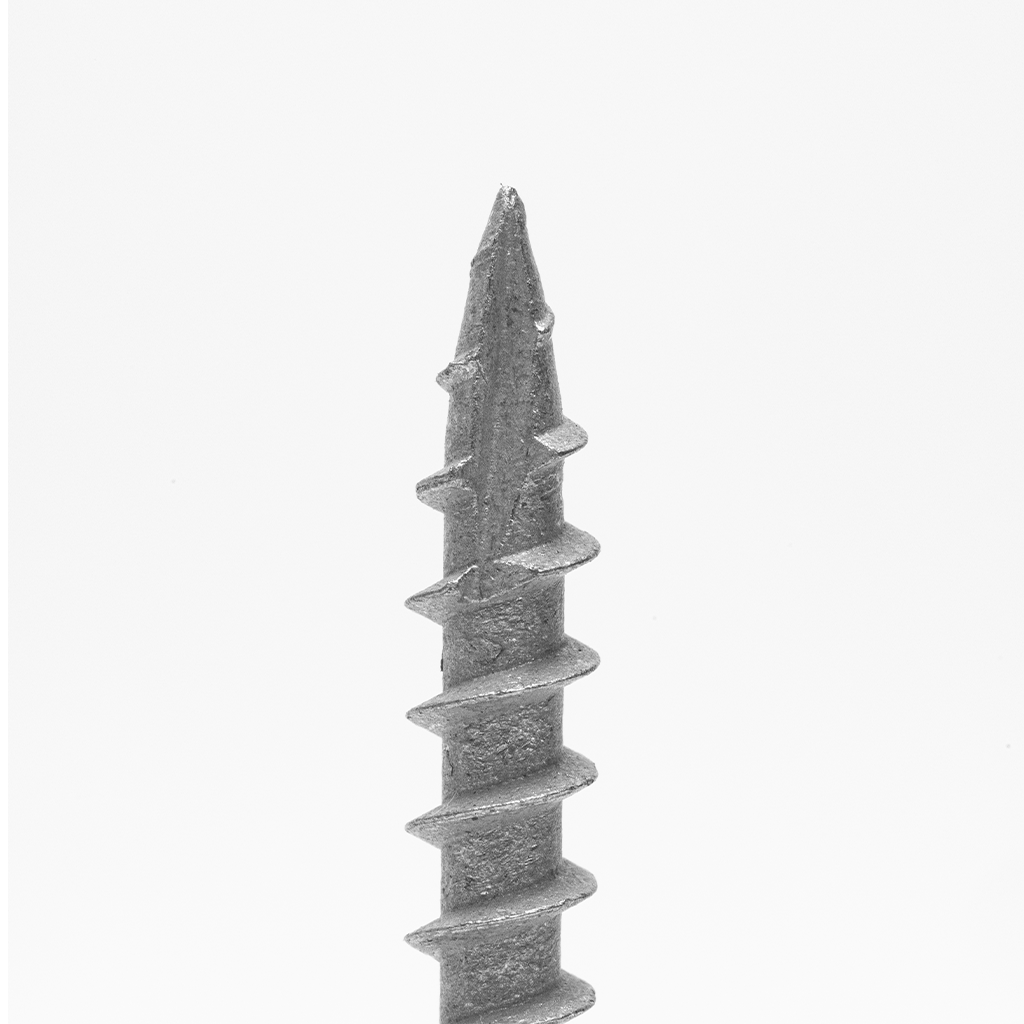

• #12 Deep Thread Shank

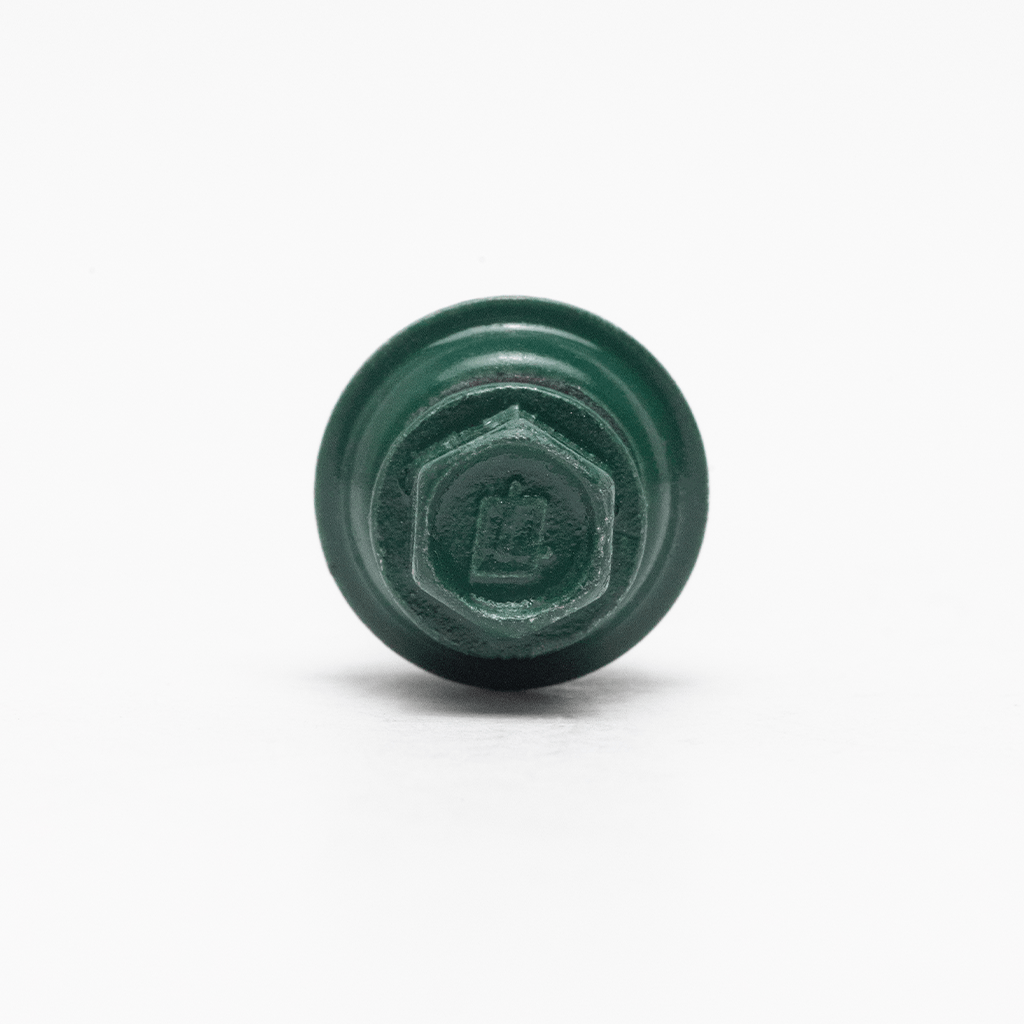

• Complete cover washer
• Mechanical Galvanized
Part # | Description | Head Style | Drill Pt | Pcs/Bx | Lbs/Bx |
---|---|---|---|---|---|
1234TG | #12 x 3/4" Stitch | 1/4" Hex | T-17 | 3,000 | 23.4 |
121TG | #12 x 1" | 1/4" Hex | T-17 | 3,000 | 22.378 |
12112TG | #12 x 1-1/2" | 1/4" Hex | T-17 | 2,500 | 23.046 |
122TG | #12 x 2" | 1/4" Hex | T-17 | 2,000 | 21.246 |
12212TG | #12 x 2-1/2" | 1/4" Hex | T-17 | 1,000 | 16.834 |
Substrate | Penetration | Pull Out Strength |
---|---|---|
7/16" OSB | Full | 265 |
1/2" Ply | Full | 426 |
3/14" Ply | Full | 429 |
2 x Yellow Pine | 1" | 885 |
2 x Spruce Pine Fir | 1" | 441 |
2 x Spruce Pine Fir | 1 - 1/2" | 769 |
Substrate | Gauge | Thickness | Pull Over Strength |
---|---|---|---|
AZ55 Galvalume | 29 | 0.014 | 516 |
AZ55 Galvalume | 26 | 0.018 | 671 |
AZ55 Galvalume | 24 | 0.024 | 870 |
Shear | Tensile | Torsional |
---|---|---|
1,780 | 2,630 | 88 |
