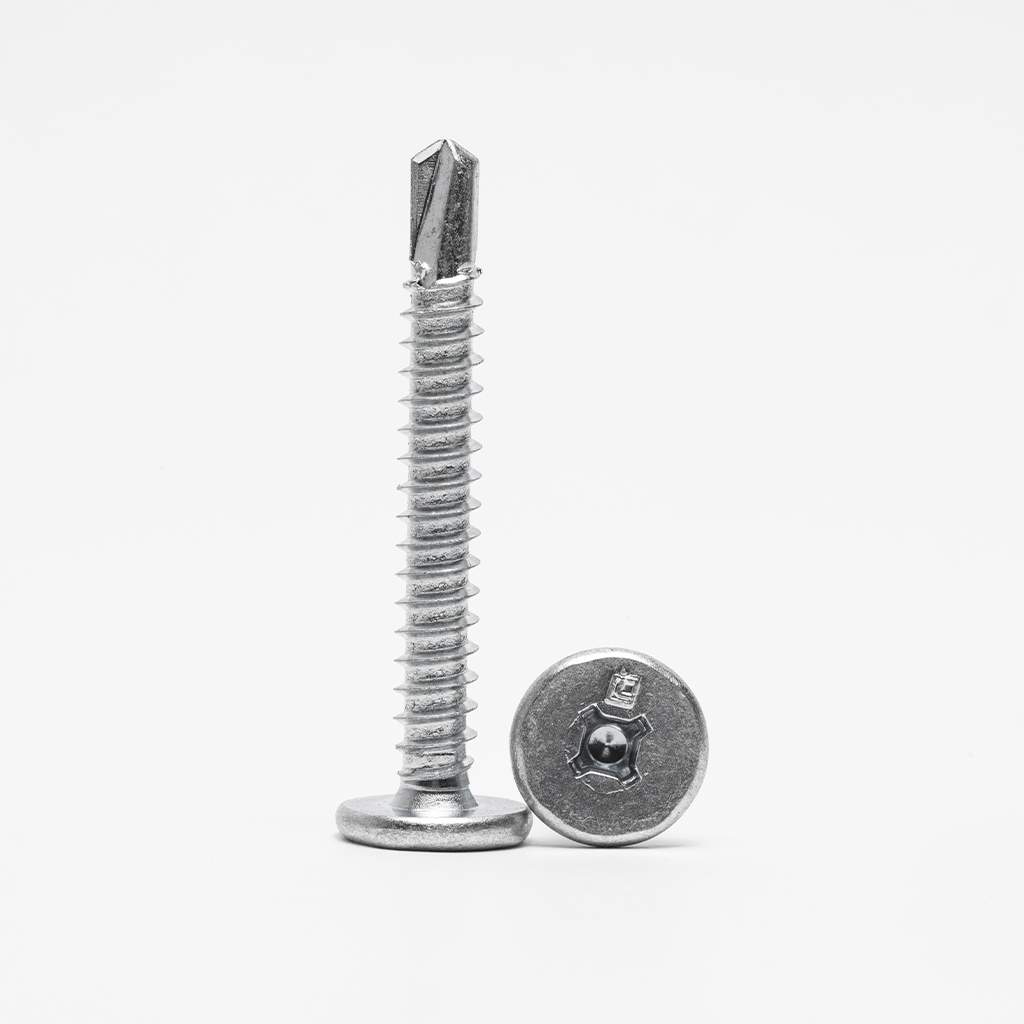

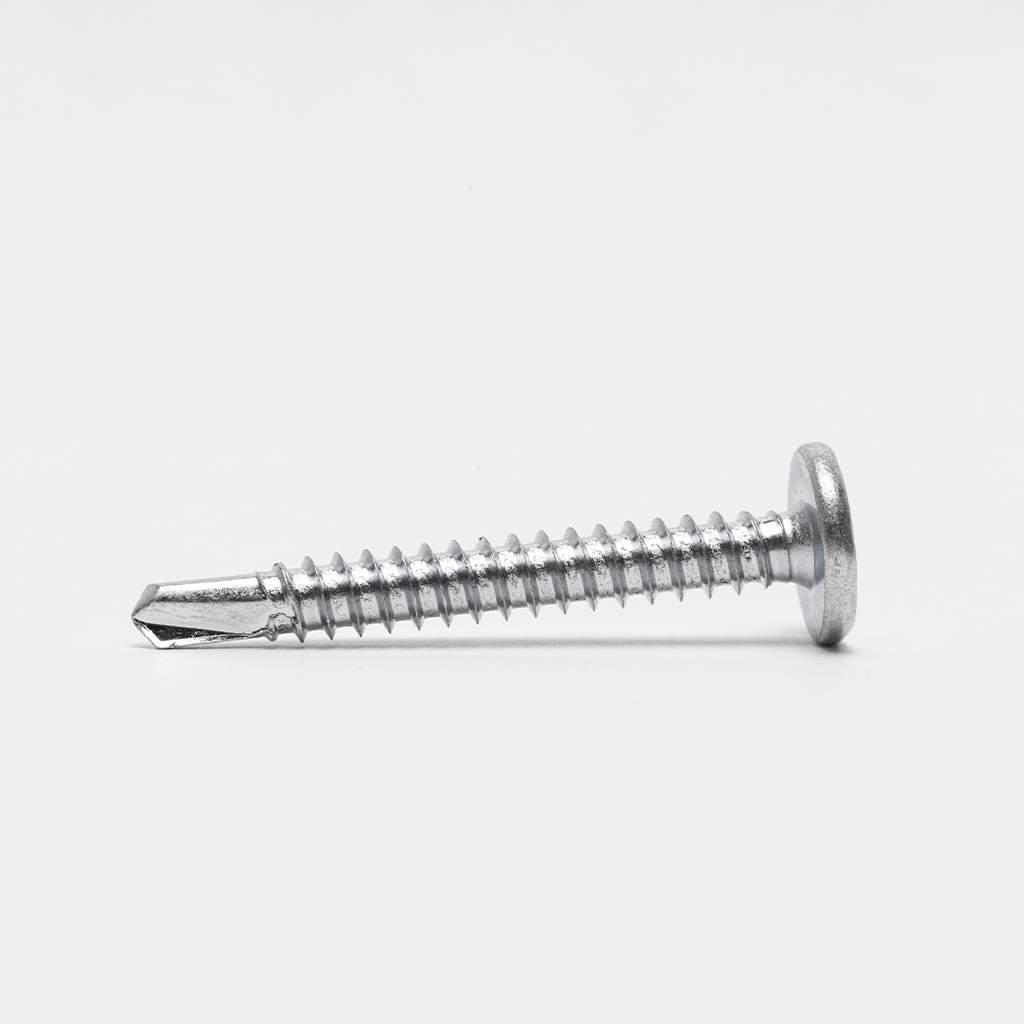

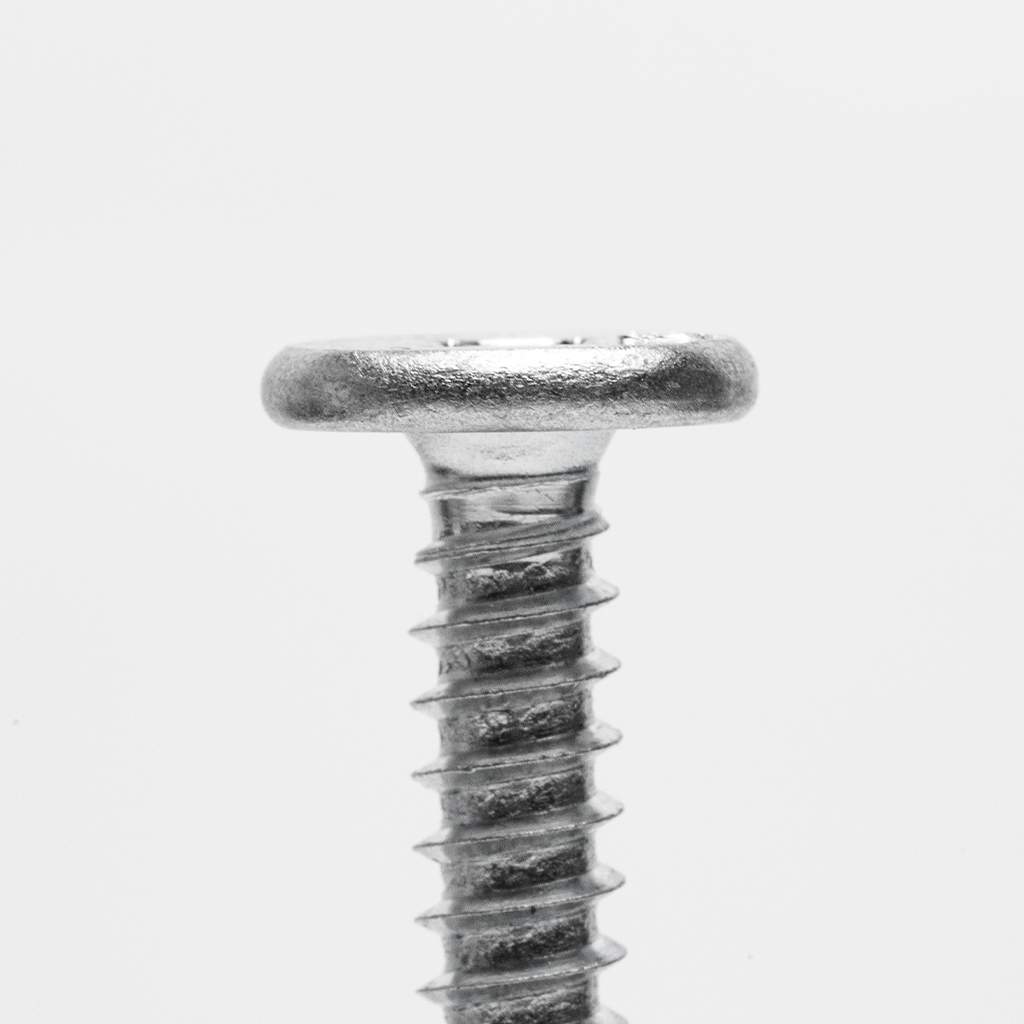

Low Profile Finish – For Metal to Metal

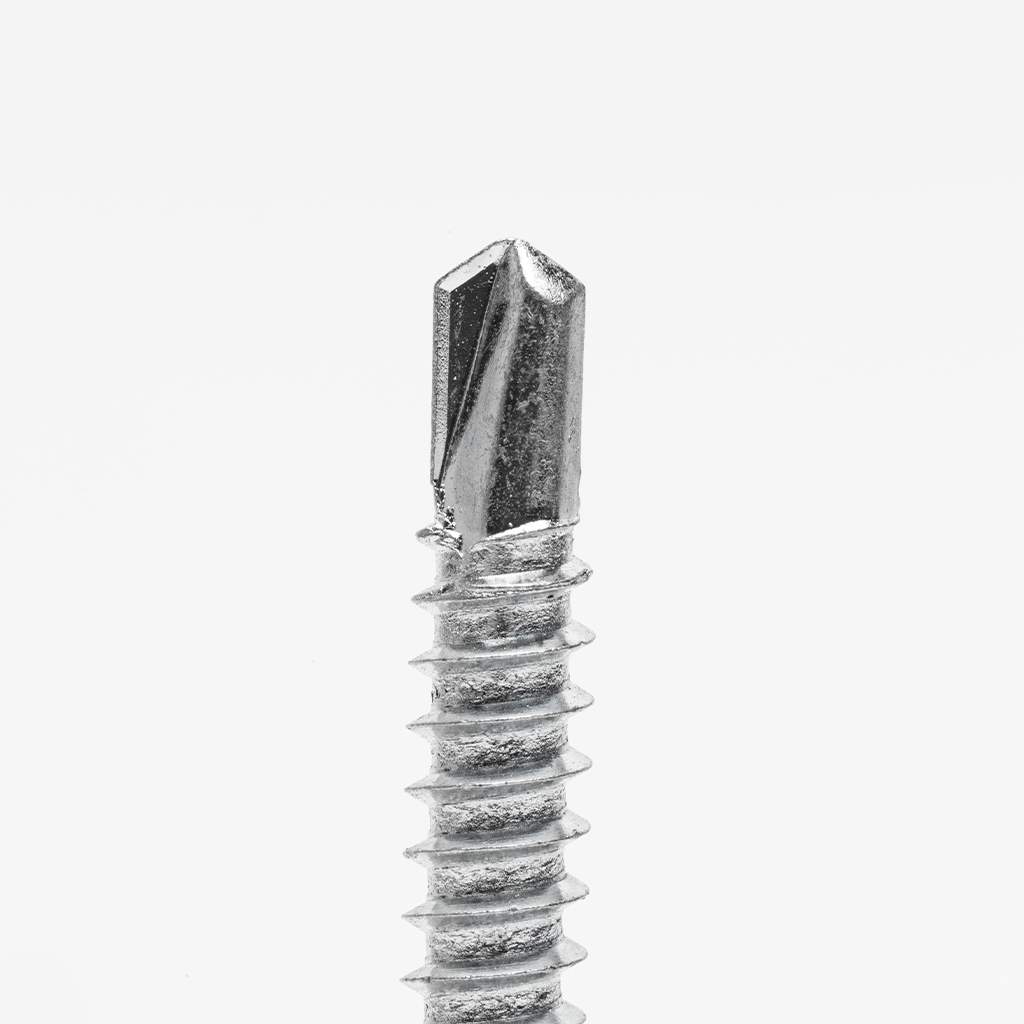

Zinc plated with #3 self-drilling point for metal to metal applications. In-stock colors ship quickly or match to your roof color.
• Designed to fasten standing seam clips
• Fastens metal to metal
• One square drive bit per box
• Available in any color! Ask about in-stock colors
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 101PHSD | #10 x 1" | Phillips/Square | #3 | 5000 | 34.9 |
| 10112PHSD | #10 x 1-1/2" | Phillips/Square | T-17#3 | 2500 | 24.1 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 3/4" Ply | Full | 387 |
| 1/2" Ply | Full | 274 |
| 7/16" OSB | Full | 201 |
| 2 x Yellow Pine | 1" | 490 |
| 2 x Spruce Pine Fir | 1" | 434 |
| 2 x Spruce Pine Fir | 1-1/2" | 646 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 425 |
| AZ55 Galvalume | 26 | 0.018 | 717 |
| AZ55 Galvalume | 24 | 0.024 | 1120 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1620 | 1900 | 77 |
