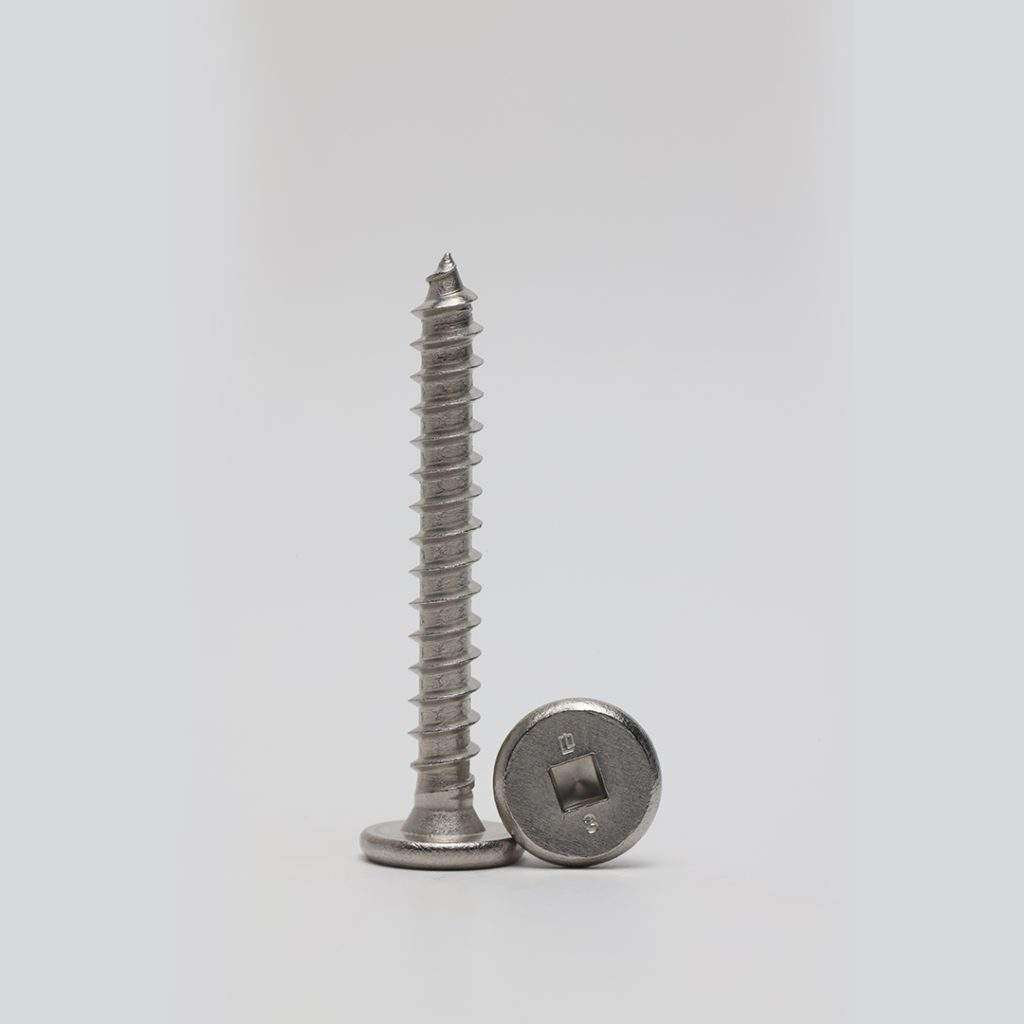

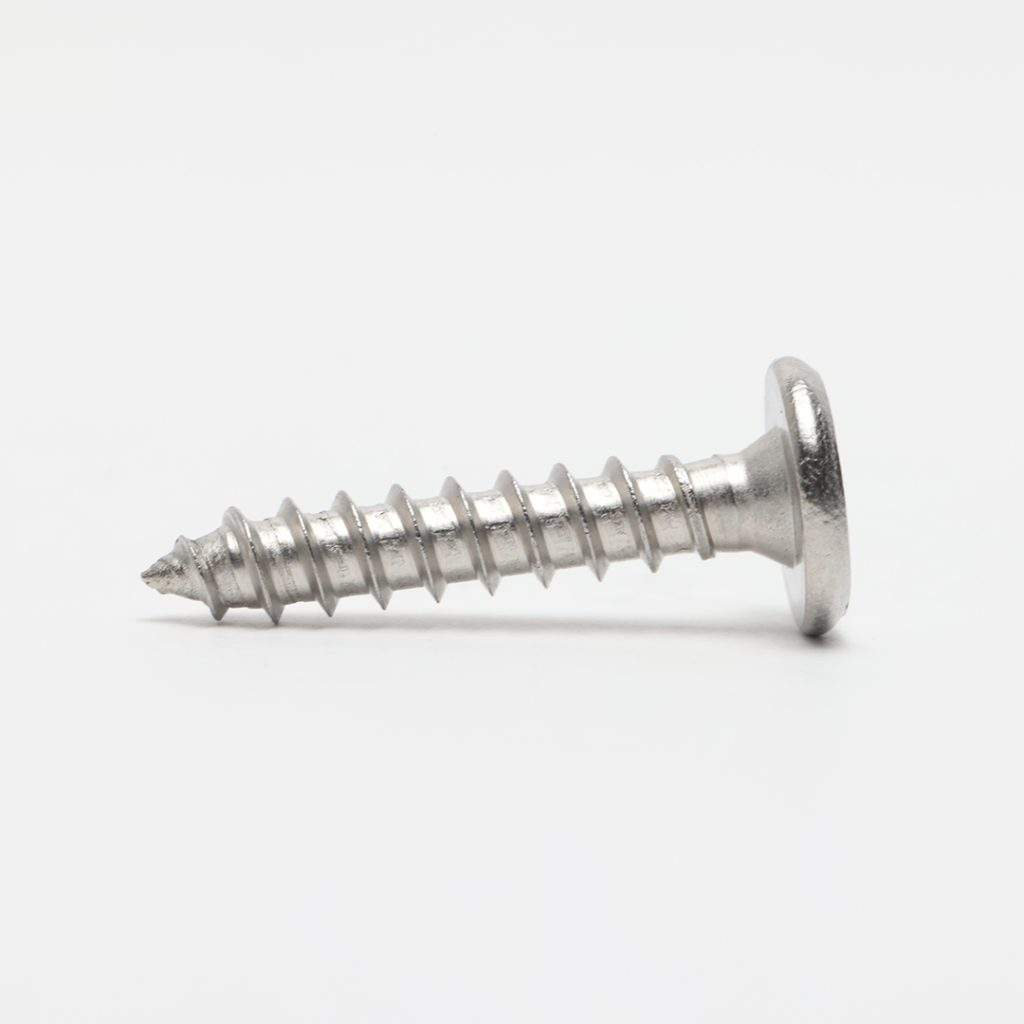

Low Profile Finish – For Metal to Wood

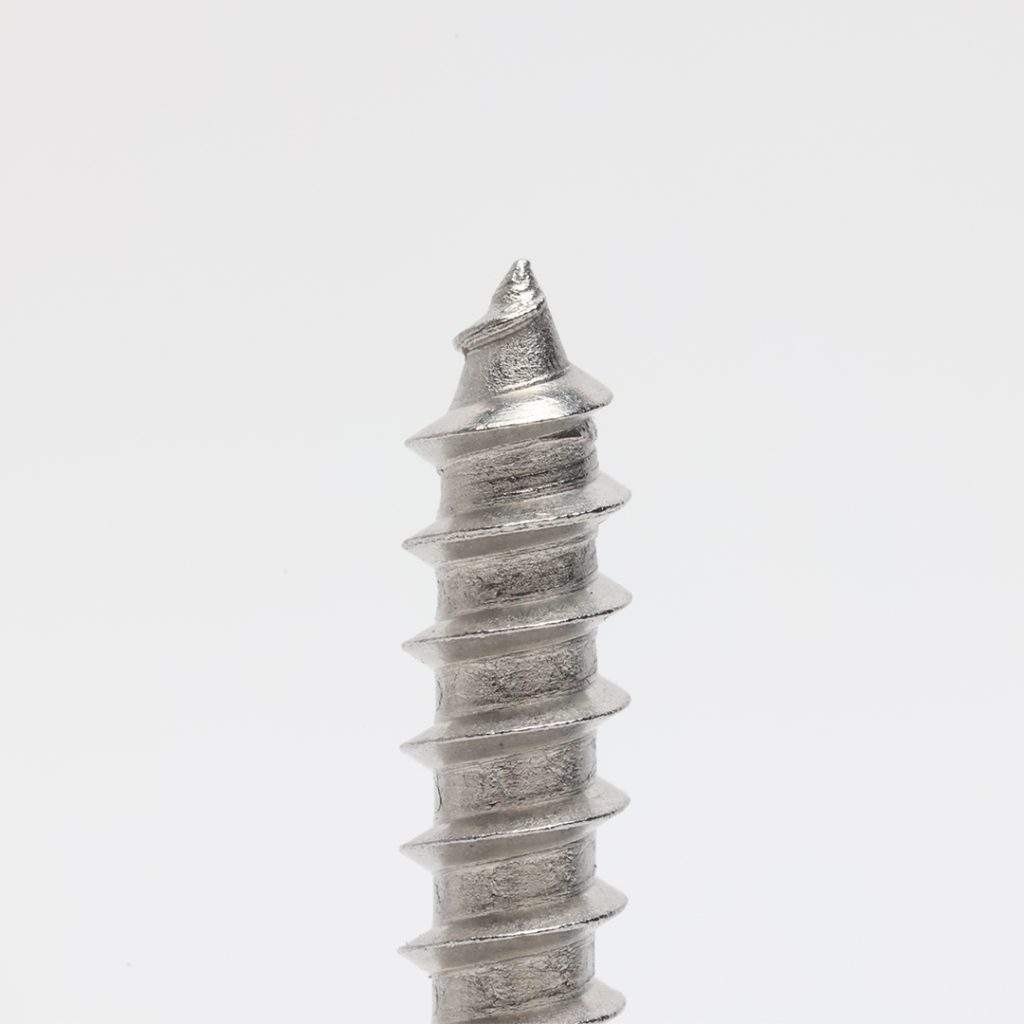

Choose stainless steel for a low-profile, flush finish. SP drill point available in multiple lengths. In-stock colors ship quickly or match to your roof color.
• Designed to fasten standing seam clips
• Fastens metal to wood or metal to metal

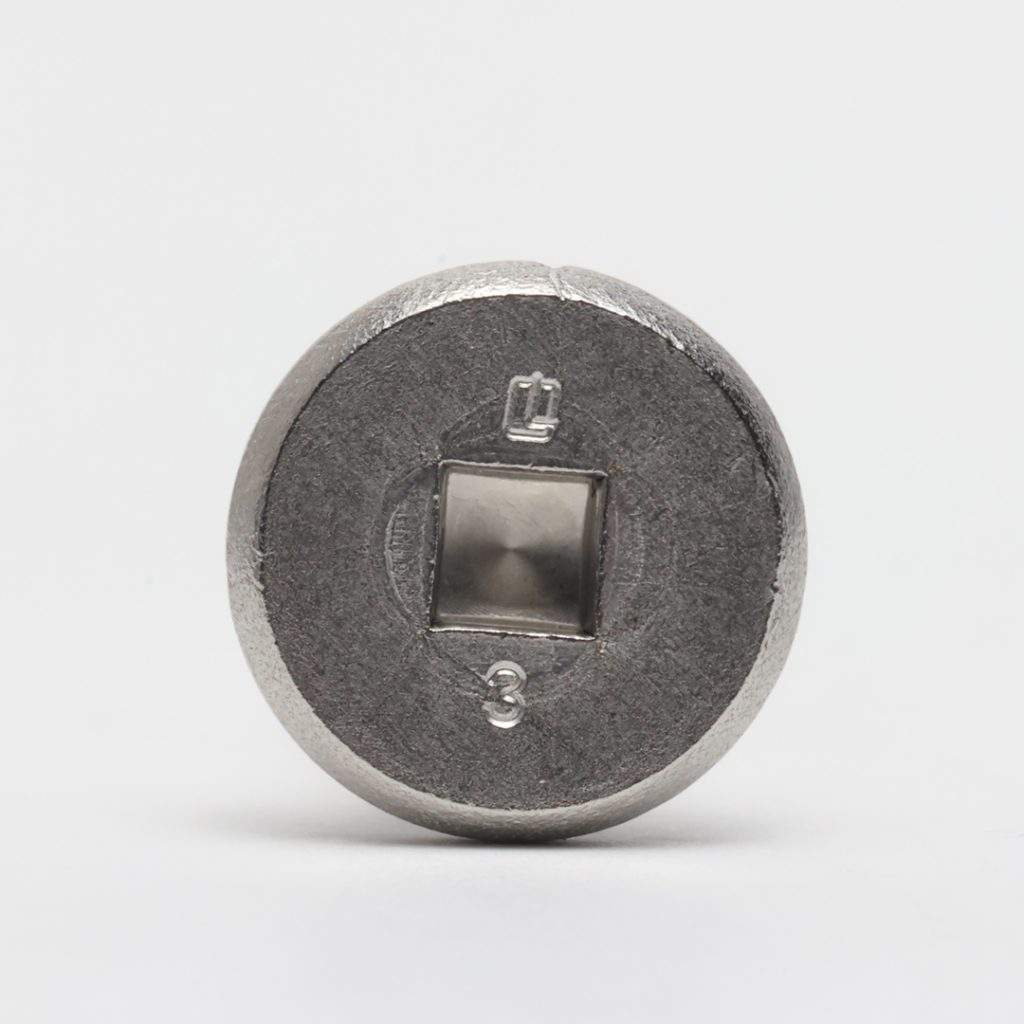

• One square drive bit per box
• Available in any color! Ask about in-stock colors
300 Series Stainless Steel
| Part # | Description | Head Style | Drill Pt | Pcs/Box | Lbs/Box |
|---|---|---|---|---|---|
| 101PHSS | #10 x 1" | #2 Square | SP | 5000 | 37.97 |
| 10112PHSS | #10 x 1-1/2" | #2 Square | SP | 2500 | 25.9 |
| 102PHSS | #10 x 2" | #2 Square | SP | 2500 | 31.8 |
Pull Out Strength
| Substrate | Penetration | Pull Out Strength |
|---|---|---|
| 3/4" Ply | Full | 454 |
| 1/2" Ply | Full | 352 |
| 7/16" OSB | Full | 187 |
| 2 x Yellow Pine | 1" | 689 |
| 2 x Spruce Pine Fir | 1" | 578 |
| 2 x Spruce Pine Fir | 1-1/2" | 1169 |
Pull Over Strength
| Substrate | Gauge | Thickness | Pull Over Strength |
|---|---|---|---|
| AZ55 Galvalume | 29 | 0.014 | 394 |
| AZ55 Galvalume | 26 | 0.018 | 635 |
| AZ55 Galvalume | 24 | 0.024 | 920 |
| Shear | Tensile | Torsional |
|---|---|---|
| 1260 | 1591 | 53 |
